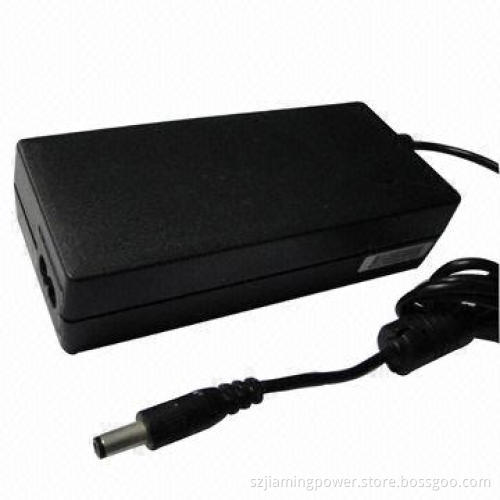

90W Series Desktop Switching Power Supply

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Input condition: AC 100 to 240V, 50/60Hz, 2A maximum

Input rated voltage: 100 to 240V AC

Input voltage range: 90 to 264V AC

Input rated frequency: 50/60Hz

Input frequency range: 47 to 63Hz

Input current: 2A maximum

Input inrush current: 30A maximum

Input no load power consumption: 0.5W maximum at 115/230V AC

Efficiency: 85% minimum

Rated output voltage and current: 15 to 24V/3.75 to 6A, 90W maximum

Output line regulation: ±1%

Output load regulation: ±5%

Output over shoot: 10% maximum

Output ripple and noise: 1% maximum

Output rising time: 20ms maximum at 115V AC

Output hold up time: 8ms minimum at 230V AC

Protection: ocp, ovp, scp and opp

Dielectric withstand voltage: 3kV, 5mA, 60s

Leakage current: 0.25mA at 230V AC

DC plug specification: optional

Dimensions: 107 x 45 x 31mm

Operating temperature range: 0 to 40°C

Storage temperature range: -20 to +85°C
