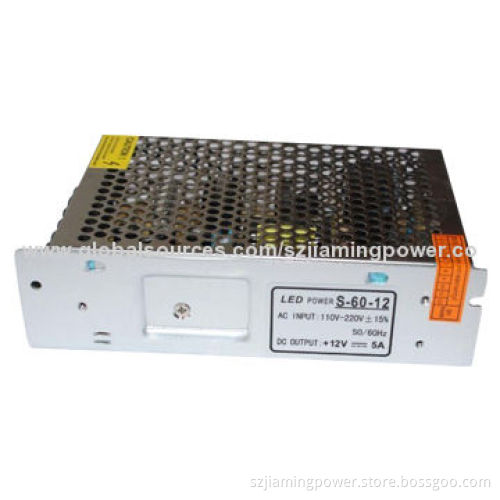

LED Switching Power Supply, Non-waterproof, 12V DC, 5A, 60W

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Specifications:

High-efficiency and good price
100% full load burn-in test
Overload/over-voltage/short-circuit
With CE and RoHS marks
DC output voltage: 12V
Output voltage tolerance: ±1%
Rated output current: 5A
Output current range: 0-5A
Ripple and noise: 100mVp-p
Inlet stability: ±0.3%
Load stability: ±0.3%
DC output power: 60W
Efficiency: 85%
Output voltage adjustment range: ±10%
AC input voltage range: 47-63V AC
AC impulse/cold-start current: 15A/115V 30A/230V
Leakage current: <0.75mA/240V AC
Overload protection: 105-150% type, pulsing hiccup shutdown, reset, auto-recovery
Over-voltage protection: 115-135% rated output power
Temperature coefficient: ±0.03%°C (0-50°C)
Setup rise hold up time: 800, 50, 20ms/115V AC, 300, 50, 80ms/230V AC
Vibration: 10-500Hz, 2G 10 minutes/1 cycle, period for 60min, each axes
Withstand voltage: O/P-FG: 0.5kV AC
Isolation resistance: I/P-O/P I/P-FG O/P-FG: 500V DC/100MΩ
Working temperature and humidity: -10-+60°C, 20-90% RH
Store temperature and humidity: -20-+85°C, 10-95% RH
Overall dimensions: 199*98*38mm/30 pieces per carton
Weight: 0.62kg
Safety standards design refer to UL1012, EN60950-1, EN61347-1, EN-61347-2 standards
EMC standards EN55015, EN55022, EN55024, EN61000-2, EN61000-3, EN61547 standards
