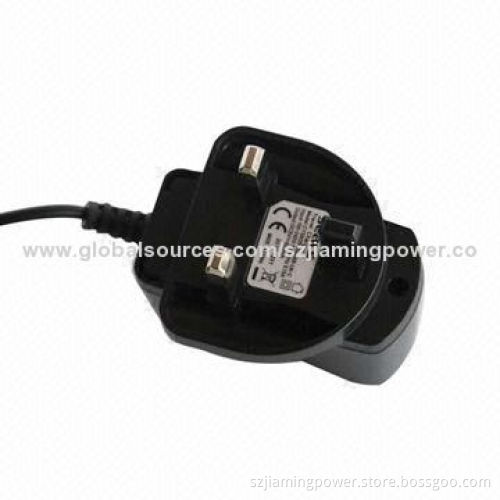

5V 1A UK Charger with CE, RoHS Marks with Interchangeable Plugs
  • 5V 1A UK Charger with CE, RoHS Marks with Interchangeable Plugs
5V 1A UK Charger with CE, RoHS Marks with Interchangeable Plugs

5V 1A UK Charger with CE, RoHS Marks with Interchangeable Plugs

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Features:
    • Fixed frequency control circuit
    • Applies to mobile phones, PDA, digital cameras and Tex-control POS
    • Input: 100 to 240V AC at 50/60Hz (0.15A)
    • Meets CMMI certificate
    • RoHS Directive-compliant
    • All related standards
    • Ultra low no-load/standby power consumption (30mW maximum)
    • Experienced staff producing AC/DC adapter with interchangeable plugs for all Countries
  • Specifications:
    • Output voltage: 5V DC
    • Voltage range: 4.2 to 12V DC
    • Current range: 0.5 to 2A
    • Rated power: 2.5 to 24W
    • Ripple and noise: 100 to 200mV (maximum)
    • Voltage range: ±5%
    • Input voltage range: 100 to 240V (90 to 264V)
    • Frequency range: 50 to 60Hz (47 to 63Hz)
    • Efficiency (type): 69.53% (minimum)
    • Protections:
      • Over-current
      • Short-circuit
      • Over-temperature
      • Over-voltage
    • Environment working temperature: -5 to 45°C
    • Working humidity: 20 to 80% RH
    • Storage humidity: 5 to 95% RH
  • Safety and burn-in safety standards:
    • GB 4943/EN 60950-1/UL 60950
    • Burn-in 80 to 100% load, 40 ±5°C, 4 hours
    • Lifetime average/expectancy: 3 years
  • Fixed frequency control circuit
  • Applies to mobile phones, PDA, digital cameras and Tex-control POS
  • Input: 100 to 240V AC at 50/60Hz (0.15A)
  • Meets CMMI certificate
  • RoHS Directive-compliant
  • All related standards
  • Ultra low no-load/standby power consumption (30mW maximum)
  • Experienced staff producing AC/DC adapter with interchangeable plugs for all Countries
  • Output voltage: 5V DC
  • Voltage range: 4.2 to 12V DC
  • Current range: 0.5 to 2A
  • Rated power: 2.5 to 24W
  • Ripple and noise: 100 to 200mV (maximum)
  • Voltage range: ±5%
  • Input voltage range: 100 to 240V (90 to 264V)
  • Frequency range: 50 to 60Hz (47 to 63Hz)
  • Efficiency (type): 69.53% (minimum)
  • Protections:
    • Over-current
    • Short-circuit
    • Over-temperature
    • Over-voltage
  • Environment working temperature: -5 to 45°C
  • Working humidity: 20 to 80% RH
  • Storage humidity: 5 to 95% RH
  • Over-current
  • Short-circuit
  • Over-temperature
  • Over-voltage
  • GB 4943/EN 60950-1/UL 60950
  • Burn-in 80 to 100% load, 40 ±5°C, 4 hours
  • Lifetime average/expectancy: 3 years
