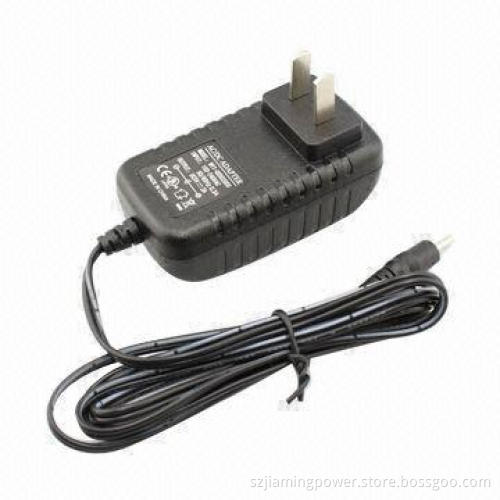

9V 2A Constant Current Power Supplier for LED Strips, CE-/FCC-certified, RoHS Directive Compliant

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Wall mount type

OVP, OCP, OPP automatic recovery

RoHS and green saving power available

Optional output connector

Meet CEC-400-2006-002-REV1

Safety: IEC60950-1: 2001

Complies with FCC class B, CISPR 22, EN55022 class B and CErequirements

Electrical specifications:

Input: 100 to 240V 50/60Hz 0.5A (maximum)
Output: 9V, 2A
Average efficiency: 80% (minimum)
Energy consumption: less than 0.5W
Operating temperature range: 0 to 40°C
Operating humidity range: 10 to 90% RH relative humidity(none-condensing)
Leakage current: 1mA at 240V AC
MTBF: 50,000 at 25/30,000 hours

Applications:

LED strip, CCTV camera, ADSL AP, wireless LAN station, LCDmonitor, booster pump, hard disk, communication terminal, digitalcamera, any portable device of machine

Input: 100 to 240V 50/60Hz 0.5A (maximum)

Output: 9V, 2A

Average efficiency: 80% (minimum)

Energy consumption: less than 0.5W

Operating temperature range: 0 to 40°C

Operating humidity range: 10 to 90% RH relative humidity(none-condensing)

Leakage current: 1mA at 240V AC

MTBF: 50,000 at 25/30,000 hours

LED strip, CCTV camera, ADSL AP, wireless LAN station, LCDmonitor, booster pump, hard disk, communication terminal, digitalcamera, any portable device of machine
