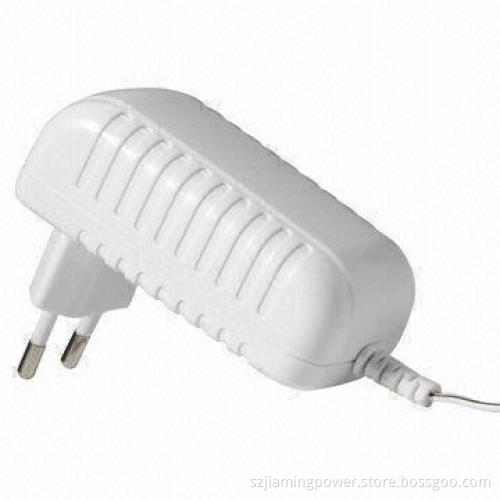

18W Wall-mounted Switching Adapter with 70% Efficiency
  • 18W Wall-mounted Switching Adapter with 70% Efficiency
18W Wall-mounted Switching Adapter with 70% Efficiency

18W Wall-mounted Switching Adapter with 70% Efficiency

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Electrical characteristics:
    • Input voltage: 100 to 240V (90 to 264V)
    • Input current: 0.45A (maximum)
    • Frequency: 50/60Hz (47 to 63Hz)
    • Output voltage: 5.0 to 24V
    • No-load power consumption: 0.5W (maximum)
    • Efficiency: 70% (minimum)
    • Ripples and noise: 80 to 180mV
    • Line regulation: ±1%
    • Load regulation: ±5%
    • Output protection
    • Short-circuit protection
    • Over-current protection
    • Over-voltage protection
    • Environment:
      • Hi-pot test: 3000V, 60S, 5mA (maximum)
      • Insulation resistance: 7MR (minimum)
      • Leakage current: 0.25mA (maximum)
      • Operating temperature: 0 to 40°C
      • Storage humidity range: 5 to 95% RH (non-condensing)
      • Burn in test: 80 to 100% at load, 40 ±5°C 4 hours
    • Safety approval standards: UL/EN 60950/GB 4943(for IT)
    • EMC standards: EN 55022 Class B/FCC part 15 Class B, EN 55024/A1: 2001/EN 61000
  • Input voltage: 100 to 240V (90 to 264V)
  • Input current: 0.45A (maximum)
  • Frequency: 50/60Hz (47 to 63Hz)
  • Output voltage: 5.0 to 24V
  • No-load power consumption: 0.5W (maximum)
  • Efficiency: 70% (minimum)
  • Ripples and noise: 80 to 180mV
  • Line regulation: ±1%
  • Load regulation: ±5%
  • Output protection
  • Short-circuit protection
  • Over-current protection
  • Over-voltage protection
  • Environment:
    • Hi-pot test: 3000V, 60S, 5mA (maximum)
    • Insulation resistance: 7MR (minimum)
    • Leakage current: 0.25mA (maximum)
    • Operating temperature: 0 to 40°C
    • Storage humidity range: 5 to 95% RH (non-condensing)
    • Burn in test: 80 to 100% at load, 40 ±5°C 4 hours
  • Safety approval standards: UL/EN 60950/GB 4943(for IT)
  • EMC standards: EN 55022 Class B/FCC part 15 Class B, EN 55024/A1: 2001/EN 61000
  • Hi-pot test: 3000V, 60S, 5mA (maximum)
  • Insulation resistance: 7MR (minimum)
  • Leakage current: 0.25mA (maximum)
  • Operating temperature: 0 to 40°C
  • Storage humidity range: 5 to 95% RH (non-condensing)
  • Burn in test: 80 to 100% at load, 40 ±5°C 4 hours
