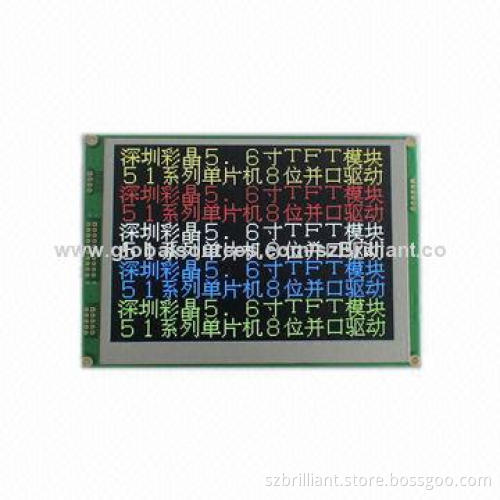

5.6-inch TFT LCD Module, Touch Panel, 640x480 Dots, Supports 32x32-pixel Graphical Cursor Function

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Product name: CJT056001 (5.6-inch)

Resolution: 640 x 3 (RGB) 480 pixels

Driver element: a-Si TFT active matrix

DD RAM: embedded 768KB

Input voltage: 5.0 and 3.3V DC

Color depth: 65K

Interface: 8,080/6,800/SPI/IIC

Viewing angle: 70/70 (L/R), 50/70 degrees (U/D)

Contrast: 500:1

Backlight: high-brightness LED backlight, minimal lifetime 20,000-hour

LCD brightness: 350CD/m²

C51 MCU

Operating temperature: -20 to +70ºC

Storage temperature: -30 to +80ºC

LCD + PCB + LED backlight + controller

Resistive touch panel

24-bit parallel RGB interface with 4-wire resistive touch interface
