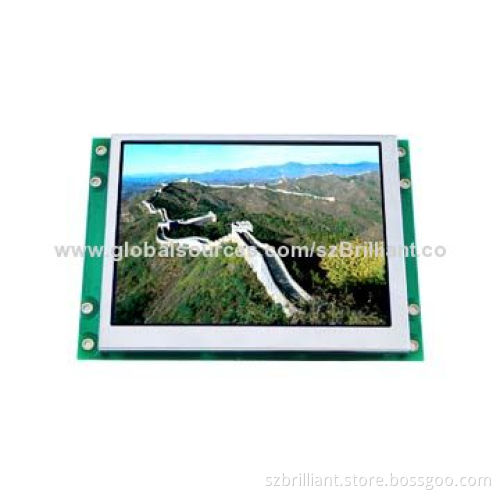

4.3-inch TFT LCD Module Display Support Multi-page DDR RAM, Embedded 4-wire Resistive Touch Panel

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Model no: CJS04301

Size: 4.3-inch

Resolution: 480x272 dots matrix

View display area: 95.04x53.86mm

Active view area: 98.5x57.3mm

Module size: 122x75mm

Height: 21.5mm

Display color: 64K colors

LED backlight type: LED

Brightness: 500cd/m2

View angle L/R/U/D: 70°/70°/50°/70°

Operating temperature: -20-+70℃

Storage temperature: -30-+80℃

Interfaces: RS232, RS485, TTL, UART

Picture download mode: USB download mode

Function: set current palette, set the character display spacing

Take a color from specific location, cursor display

Text display, choose the character library display, character zoom in display

Set/cancel the limitation for textbox

Display point, line display, line chart display, ellipse and ellipse area operating, circular curve display

Rectangle and rectangular region display, dynamic curve display, clear full screen, picture/icon display and more
