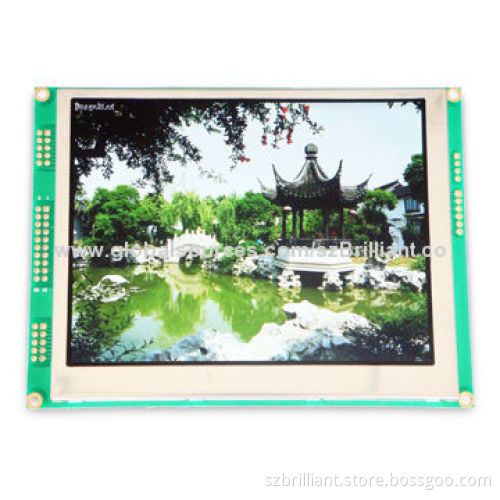

5" TFT LCD Module, Supports MCU/I2C or 3/4-wire SPI I/F, 640x480P Resolution/Embedded 768KB DDRAM

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT in Advance

Product Description

Specifications:

Other TFT LCD display module styles:

Driver element: a-Si TFT active matrix

Dot matrix: 640 (RGB) x 480 pixels

DDRAM: embedded 768KB

Input voltage: 5.0 and 3.3V DC

Controller: special IC

Interfaces: 8,080/6,800/SPI/IIC

Viewing angle: 70/70 (L/R), 50/70° (U/D)

Contrast ration: 500:1

Backlight: high-brightness LED

Minimal lifespan: 20,000 hours

LCD brightness: 350cd/m²

Operating temperature range: -20 to 70°C

Storage temperature range: -30 to 80°C

Module dimensions: 132.0 x 93.0 x 11.6mm

VA: 104.25 x 78.93mm

AA: 101.57 x 76.18mm

Without touch screen

320x240 CJT03501 92x69x9.5 72.4x54.9 0.073x0.219 5V/3V

480x272 CJT04301 119×72×7.5 98.5×57.3 0.066×0.198 5V/3V

640x480 CJT05001 132×93×13.2 105.6×80.2 0.0529×0.1587 5V/3V

640x480 CJT05601 141×105×10.2 115.5×87.27 0.0588×0.1764 5V/3V

800x480 CJT07001 178×108.8×10 154.9×93.9 0.0635×0.1905 5V/3V
