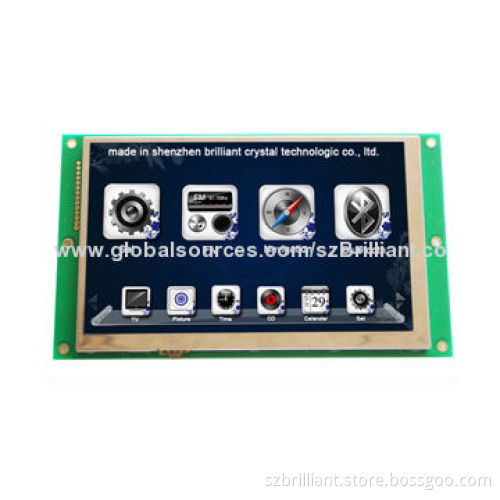

7-inch TFT Smart Terminal LCD Module with Controller STM32F103, Almost no Need to Write Program

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Size: 7 inches

Resolution: 800x480 dot-matrix

Viewing display area: 154.9x93.9mm

Active viewing area: 152.4x91.44mm

Module size: 190x112mm

Height: 18mm

Display color: 64K colors

LED backlight type: LED

Brightness: 300cd/m²

Viewing angle (L/R/U/D): 70/70/50/70°

Operate temperature: -20-70°C

Storage temperature: -30-80°C

Interface: RS232,.RS485.TTL UART

Picture download mode: USB download mode

Functions:

Sets current palette

Sets the character display spacing

Takes a color from specific location

Cursor display

Text display

Chooses the character library display

Character zoom in display

Set/cancel the limitation for textbox

Display point

Line display

Line chart display

Ellipse and ellipse area operate

Circular curve display

Rectangle and rectangular region display

Dynamic curve display

Clear full screen

Picture/icon display and more
