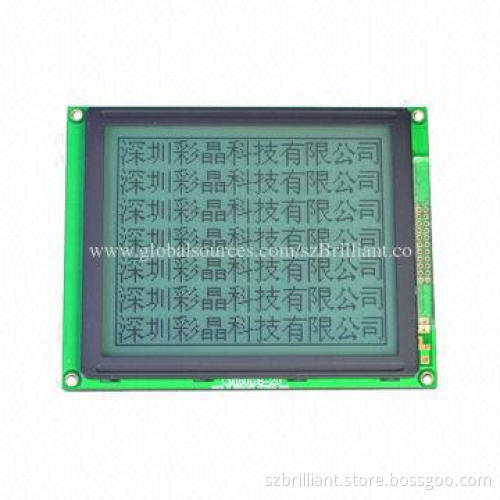

160128 Alphanumeric LCD Display Module, Supports Serial/Parallel Communication, 3 or 5V
- Payment Type:
- T/T, Advance
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T, Advance |
|---|
- Model no: CM160128-2
- Dot matrix: 160 x 128 dots
- Size: 129*102*12/16.4mm
- VA: 101*82mm
- Drive method: 1/128 duty, 1/12 bias
- Viewing angle: 12:00 or 6:00
- Display: STN blue or Y-G model or other
- Voltage: 3/5V
- Controller: T6963
- Top: -20 to +70°C
- TST: -30 to +80°C
- OEM/OEM orders are highly welcomed
-
