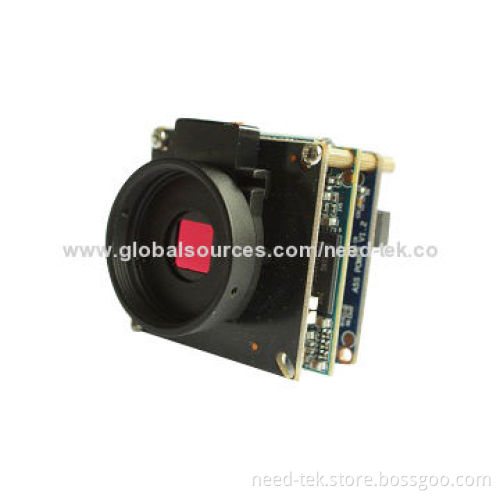

2-megapixel HD Infrared OEM IP Camera Module, Supports ONVIF, Two-way Audio with SD Card Slot
  • 2-megapixel HD Infrared OEM IP Camera Module, Supports ONVIF, Two-way Audio with SD Card Slot
2-megapixel HD Infrared OEM IP Camera Module, Supports ONVIF, Two-way Audio with SD Card Slot

2-megapixel HD Infrared OEM IP Camera Module, Supports ONVIF, Two-way Audio with SD Card Slot

Get Latest Price
Payment Type:
T/T, L/C, Western Union or PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union or PayPal
Product Description
Product Description
  • Characteristics:
    • Progressive scan CMOS image sensor, output 1,080 at 30ftps video
    • Provide wide dynamic image, better image quality
    • Industry-leading coding algorithm can provide broadcast-quality video
    • Standard H.264 main profile at level 4.1 streams output
    • Local analog output can be easy for installation and adjustment
    • Supports two-way audio
    • Supports PoE (optional)
    • Supports iPhone, Google's Android and other smartphones monitoring
    • Supports auto-iris, auto-electronic shutter functions, fits for different environments
    • Supports e-PTZ control, alarm input and output
    • Supports local storage by microSD card (optional)
    • ICR IR filter automatically switching, suitable for day and night surveillance AWB, AE, AG
    • Built-in Web server, supports video viewing and parameter setting by Web
    • ONVIF compatible
  • Specifications:
    • 3 models: NA-38V2E
    • Image sensor: 2MP 1/3-inch CMOS
    • Electronic shutter speed: 1/50-1/100,000 seconds
    • Minimum illumination: 0.1 Lux F1.2 (color mode), 0.01 LuxF1.2 (black and white modes)
    • 3A control: AWB/AF/AE
    • Day and night: supported
    • Video encoding: H.264
    • Bitrates: 256kbps-12Mbps
    • Resolution:
      • 1,080P (1,920 x 1,080P at 30fps)
      • 960P (1,280 x 960P at 30fps), 720P (1,280 x 720P at 30fps)
      • VGA (640 x 480P at 30fps), QVGA (320 x 240 at 30fps), D1, CIF
    • Analog video output: supported
    • Audio encoding: G.711A
    • Audio output: 1 line out
    • Audio input: 1 line-in
    • Alarm interface: 1 input, 1 output
    • 485 interface: 1 support for multiple PTZ protocols
    • SD storage: supported
    • PoE: supported
    • Wi-Fi: supported
    • Infrared light: supported
    • Network interface: 10M/100M Ethernet, compatible with PoE (IEEE802.3af)
    • Network protocols: HTTP, DDNS, DHCP, PPPoE, RTSP, RTP, RTCP, ONVIF
    • Remote management: supports for Web browsing, IE
    • Power supply: 12V DC/1A
    • Power consumption: <5W
    • Working environment: -10 to ＋55℃
    • Size: 38x38mm
  • Progressive scan CMOS image sensor, output 1,080 at 30ftps video
  • Provide wide dynamic image, better image quality
  • Industry-leading coding algorithm can provide broadcast-quality video
  • Standard H.264 main profile at level 4.1 streams output
  • Local analog output can be easy for installation and adjustment
  • Supports two-way audio
  • Supports PoE (optional)
  • Supports iPhone, Google's Android and other smartphones monitoring
  • Supports auto-iris, auto-electronic shutter functions, fits for different environments
  • Supports e-PTZ control, alarm input and output
  • Supports local storage by microSD card (optional)
  • ICR IR filter automatically switching, suitable for day and night surveillance AWB, AE, AG
  • Built-in Web server, supports video viewing and parameter setting by Web
  • ONVIF compatible
  • 3 models: NA-38V2E
  • Image sensor: 2MP 1/3-inch CMOS
  • Electronic shutter speed: 1/50-1/100,000 seconds
  • Minimum illumination: 0.1 Lux F1.2 (color mode), 0.01 LuxF1.2 (black and white modes)
  • 3A control: AWB/AF/AE
  • Day and night: supported
  • Video encoding: H.264
  • Bitrates: 256kbps-12Mbps
  • Resolution:
    • 1,080P (1,920 x 1,080P at 30fps)
    • 960P (1,280 x 960P at 30fps), 720P (1,280 x 720P at 30fps)
    • VGA (640 x 480P at 30fps), QVGA (320 x 240 at 30fps), D1, CIF
  • Analog video output: supported
  • Audio encoding: G.711A
  • Audio output: 1 line out
  • Audio input: 1 line-in
  • Alarm interface: 1 input, 1 output
  • 485 interface: 1 support for multiple PTZ protocols
  • SD storage: supported
  • PoE: supported
  • Wi-Fi: supported
  • Infrared light: supported
  • Network interface: 10M/100M Ethernet, compatible with PoE (IEEE802.3af)
  • Network protocols: HTTP, DDNS, DHCP, PPPoE, RTSP, RTP, RTCP, ONVIF
  • Remote management: supports for Web browsing, IE
  • Power supply: 12V DC/1A
  • Power consumption: <5W
  • Working environment: -10 to ＋55℃
  • Size: 38x38mm
  • 1,080P (1,920 x 1,080P at 30fps)
  • 960P (1,280 x 960P at 30fps), 720P (1,280 x 720P at 30fps)
  • VGA (640 x 480P at 30fps), QVGA (320 x 240 at 30fps), D1, CIF
