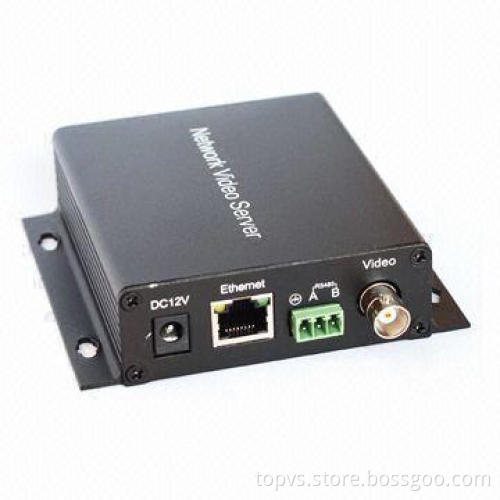

1 H.264 Channel 25fps Real-time Mini Network Video Encoder with USB for External 3G and Wi-Fi
  • 1 H.264 Channel 25fps Real-time Mini Network Video Encoder with USB for External 3G and Wi-Fi
  • 1 H.264 Channel 25fps Real-time Mini Network Video Encoder with USB for External 3G and Wi-Fi
1 H.264 Channel 25fps Real-time Mini Network Video Encoder with USB for External 3G and Wi-Fi
1 H.264 Channel 25fps Real-time Mini Network Video Encoder with USB for External 3G and Wi-Fi

1 H.264 Channel 25fps Real-time Mini Network Video Encoder with USB for External 3G and Wi-Fi

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Features:
    • Hisilicon 3512 chipset, embedded Linux OS
    • Mini size, H.264 compression, full D1 in real-time
    • Supports external 3G/Wi-Fi via built-in USB
    • Strong software supported
    • Smartphone view/video lost/video mask/motion detection/RS485/e-mail/FTP/dual stream
  • Technical parameters:
    • Video input: 1 channel, NTSC/PAL, 1V-pp 75Ω (BNC)
    • Video output: no
    • Compression standard: H.264
    • Resolution:
      • QCIF: 176 x 144 (PAL), 176 x 120 pixels (NTSC)
      • CIF: 352 x 288 (PAL), 352 x 240 pixels (NTSC)
      • H-D1: 360 x 576 (PAL), 360 x 480 pixels (NTSC)
      • D1: 720 x 576 (PAL), 720 x 480 pixels (NTSC)
    • FPS/bit rate: maximum: 25fps (PAL), 30fps (NTSC), 32Kbps to 3Mbps, CBR/VBR adjustable
    • OSD function: character, time overlay on video
    • Audio input: no
    • Audio output: no
    • Audio parameter:
      • Frequency: 8kHz
      • Bit wide: 16 bits
      • Compression: G711A
      • Frame rate: 32Kps
    • Network interface: RJ45 x 1 10/100M (optional), USB x 1 support external Wi-Fi and 3G
    • IP protocol: TCP/IP, UDP/IP, HTTP, ICMP, FTP, e-mail, Telnet
    • IE application: built-in web server, user can control video server by IE directly
    • IE function: website search, internet monitor, ADSL, 3G (CDMA/TD-SCDMA/WCDMA)
    • Motion detection: sensitivity range 1 to 9, detecting area: 16 x 12
    • Alarm I/O: no
    • Video lost: linkage alarm will be triggered when video lost
    • Record interface: USB port x 1 for external storage
    • Video recording: timing/manual/alarm
    • RS422/RS485: used in PTZ control
    • User management: multi-stage user password verification, multi-user are also allowed to visit simultaneously
    • Built-in watch dog: auto reset system to make sure the normal operation
    • Remote reset: remote reset system via internet
    • Power supply: 12V DC, 1A, <5W
    • Working temperature/humidity: -10 to 70℃, 10 to 95% RH
    • Product dimension: 110 x 105 x 30mm
    • Net weight: 250g
  • Hisilicon 3512 chipset, embedded Linux OS
  • Mini size, H.264 compression, full D1 in real-time
  • Supports external 3G/Wi-Fi via built-in USB
  • Strong software supported
  • Smartphone view/video lost/video mask/motion detection/RS485/e-mail/FTP/dual stream
  • Video input: 1 channel, NTSC/PAL, 1V-pp 75Ω (BNC)
  • Video output: no
  • Compression standard: H.264
  • Resolution:
    • QCIF: 176 x 144 (PAL), 176 x 120 pixels (NTSC)
    • CIF: 352 x 288 (PAL), 352 x 240 pixels (NTSC)
    • H-D1: 360 x 576 (PAL), 360 x 480 pixels (NTSC)
    • D1: 720 x 576 (PAL), 720 x 480 pixels (NTSC)
  • FPS/bit rate: maximum: 25fps (PAL), 30fps (NTSC), 32Kbps to 3Mbps, CBR/VBR adjustable
  • OSD function: character, time overlay on video
  • Audio input: no
  • Audio output: no
  • Audio parameter:
    • Frequency: 8kHz
    • Bit wide: 16 bits
    • Compression: G711A
    • Frame rate: 32Kps
  • Network interface: RJ45 x 1 10/100M (optional), USB x 1 support external Wi-Fi and 3G
  • IP protocol: TCP/IP, UDP/IP, HTTP, ICMP, FTP, e-mail, Telnet
  • IE application: built-in web server, user can control video server by IE directly
  • IE function: website search, internet monitor, ADSL, 3G (CDMA/TD-SCDMA/WCDMA)
  • Motion detection: sensitivity range 1 to 9, detecting area: 16 x 12
  • Alarm I/O: no
  • Video lost: linkage alarm will be triggered when video lost
  • Record interface: USB port x 1 for external storage
  • Video recording: timing/manual/alarm
  • RS422/RS485: used in PTZ control
  • User management: multi-stage user password verification, multi-user are also allowed to visit simultaneously
  • Built-in watch dog: auto reset system to make sure the normal operation
  • Remote reset: remote reset system via internet
  • Power supply: 12V DC, 1A, <5W
  • Working temperature/humidity: -10 to 70℃, 10 to 95% RH
  • Product dimension: 110 x 105 x 30mm
  • Net weight: 250g
  • QCIF: 176 x 144 (PAL), 176 x 120 pixels (NTSC)
  • CIF: 352 x 288 (PAL), 352 x 240 pixels (NTSC)
  • H-D1: 360 x 576 (PAL), 360 x 480 pixels (NTSC)
  • D1: 720 x 576 (PAL), 720 x 480 pixels (NTSC)
  • Frequency: 8kHz
  • Bit wide: 16 bits
  • Compression: G711A
  • Frame rate: 32Kps
