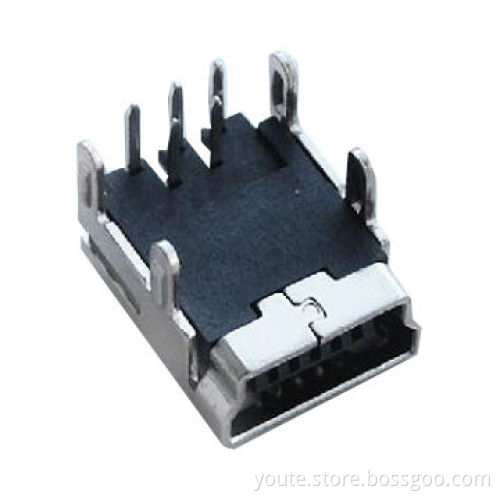

Mini USB Connector, 5PF, 90°, DIP B-Type

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C, T/T or Western Union

Product Description

Material:

Sheet: C2680H, T=0.30, Ni-plated
Terminal: C5191H, T=0.25, gold plating on contact area, tinplating on solder area
Housing: PBT+GF30% black/white

Mechanical and electrical:

Sheet: C2680H, T=0.30, Ni-plated

Terminal: C5191H, T=0.25, gold plating on contact area, tinplating on solder area

Housing: PBT+GF30% black/white

Contact resistance: 30m© max

Rated voltage and current: 1.5A at 250V AC min

Dielectric withstanding voltage: 500V AC(rms) for 1 minute

Durability(lifespan test): 1,500 cycles

Insertion force: 35N max

Extraction force: 10N max
