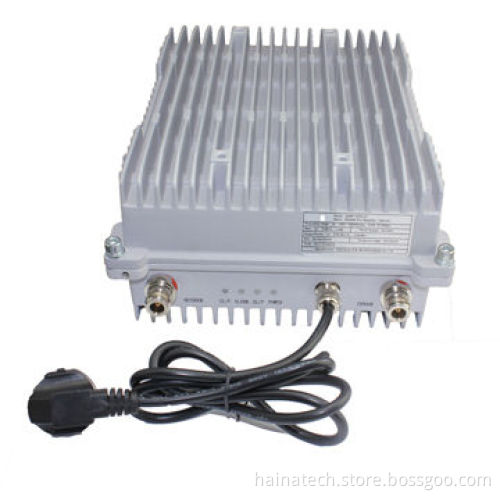

Wireless Mobile Phone Booster, Intelligent Monitoring
  • Wireless Mobile Phone Booster, Intelligent Monitoring
  • Wireless Mobile Phone Booster, Intelligent Monitoring
Wireless Mobile Phone Booster, Intelligent Monitoring
Wireless Mobile Phone Booster, Intelligent Monitoring

Wireless Mobile Phone Booster, Intelligent Monitoring

Get Latest Price
Payment Type:
T/T, L/C, Western Union, PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union, PayPal
Product Description
Product Description
  • High gain, low noise
  • Automatic level/gain control (ALC/AGC), high stability and reliability
  • Intelligent monitoring, automatic alarm and supports remote control
  • Quick installation, easy operation and maintenance
  • Suitable for variety of environments, waterproof and dust-proof, low cost
  • Output power: 33, ±2dBm
  • Gain: 80, ±3dB
  • MGC (step attenuation): ≥31 dB/1dB step
  • ALC control: ≥25dB, auto shut off after 25dB
  • Gain flatness:
    • GSM and CDMA, ≤5dB (p-p)
    • WCDMA: ≤2dB/3.84MHz
  • Gain flatness:
    • GSM and CDMA: ≤5dB(p-p)
    • WCDMA: ≤2dB/3.84MHz
    • Ripple in band: ≤5.0dB
    • Noise figure: ≤5.0dB
  • VSWR: ≤1.8
  • Spurious emission mask (WCDMA) only) meet 3GPP TS 25.143
  • Software specifications:
    • Local monitoring PC via RS232
    • Remote monitoring via SMS or GPRS modem
    • Controlled parameters: gain, frequency, repeater on/off, alarm enable and more
    • Monitoring parameters: gain, frequency, repeater on/off, alarm message, output power
    • Alarm items: repeater failure, DC failure, ALC alarm and PLL failure
  • Mechanical specifications:
    • Operating temperature range: 25 to 50ºC
    • Relative humidity range: 0-95%
    • Dimensions: 255 x 208 x 120mm (without connectors, without brackets)
    • Weight: ≤5kg
    • Power supply: AC 220V ±20%, 50Hz ±10%
    • Connectors type: N female
    • Mounting: wall or pole
    • Packing: 1pc in box
  • GSM and CDMA, ≤5dB (p-p)
  • WCDMA: ≤2dB/3.84MHz
  • GSM and CDMA: ≤5dB(p-p)
  • WCDMA: ≤2dB/3.84MHz
  • Ripple in band: ≤5.0dB
  • Noise figure: ≤5.0dB
  • Local monitoring PC via RS232
  • Remote monitoring via SMS or GPRS modem
  • Controlled parameters: gain, frequency, repeater on/off, alarm enable and more
  • Monitoring parameters: gain, frequency, repeater on/off, alarm message, output power
  • Alarm items: repeater failure, DC failure, ALC alarm and PLL failure
  • Operating temperature range: 25 to 50ºC
  • Relative humidity range: 0-95%
  • Dimensions: 255 x 208 x 120mm (without connectors, without brackets)
  • Weight: ≤5kg
  • Power supply: AC 220V ±20%, 50Hz ±10%
  • Connectors type: N female
  • Mounting: wall or pole
  • Packing: 1pc in box
