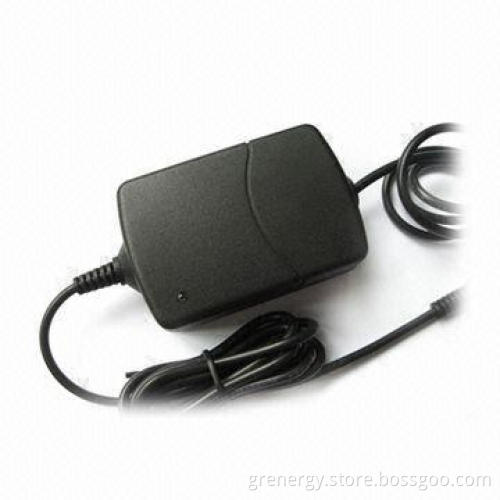

Lithium Polymer Battery Pack Charger, Suitable for 7.4V 1 to 10Ah and 90 to 264V AC Input Voltage

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Rated input voltage: 100 to 240 V AC, 50/60Hz

Input voltage range: 90 to 264V AC

Rated input current: 0.2A (input: 220V and output: fullload)

Maximum input power: 12W

Battery specification: 7.4V 1 to 10Ah of lithium polymerbatteries

Rated output voltage: 8.5V

Output voltage range: 5 to 8.6V

Rated charge current: 1.0A

Charge current range: 0.9 to 1.2A

Trickle charge current: 0.1 to 0.3 to 0A

Output short-circuit current: 0.5A

Maximum output power: 10.3W

Charge method: constant

Trickle switch condition after finishing quick charge: 0.1 to0.3C of current change

LED display:

Charge efficiency: >80% at maximum load

Operating temperature range: -10 to 40 degree Celsius

Operating humidity range: < 90% RH

Storage temperature: -40 to 70 degree Celsius

Storage humidity: 0 to 95%

Cooling: natural convection

Input and output terminals: customer specified

Vibration test: 5mm, 50Hz, 600s

Impact test: 0.8m drop test, 3 times

Safety standard: CE-LVD, CCC, UL

EMC characteristics: CE-EMC, FCC, CCC, UL

Red charging

Red and green flashing, output short

Green standby or charge finished
