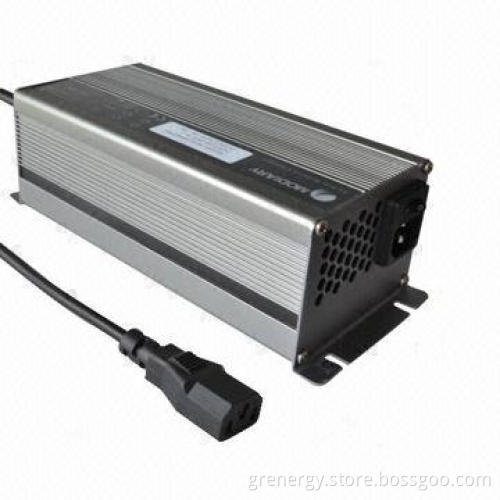

Battery Charger, 29.4V/10A for 24V 7S Lithium-ion Battery Pack, Input 100-240V AC, Frequency 50/60Hz
  • Battery Charger, 29.4V/10A for 24V 7S Lithium-ion Battery Pack, Input 100-240V AC, Frequency 50/60Hz
Battery Charger, 29.4V/10A for 24V 7S Lithium-ion Battery Pack, Input 100-240V AC, Frequency 50/60Hz

Battery Charger, 29.4V/10A for 24V 7S Lithium-ion Battery Pack, Input 100-240V AC, Frequency 50/60Hz

Get Latest Price
Payment Type:
T/T, L/C, PayPal or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, PayPal or Western Union
Product Description
Product Description
  • Technical data:
    • Maximum output power: 294W
    • Input voltage: 100-240V AC
    • Nominal output voltage: 24V
    • Maximum output voltage: 29.4V
    • Maximum output current: 10A
    • Line frequency range: 50-60Hz
    • Efficiency (at 100% loading): e80%
    • Ripple: d1% x Vo
    • Temperature range: 0-45°C
    • Relative humidity: <65% RH
  • Protection:
    • Short-circuit protection
    • Over-voltage protection
    • Over-current protection
    • Reverse polarity connect protection
  • Specifications:
    • General:
      • 3-step charging control (per-charge CC-CV)
      • Options:
        • NTC inside
        • 100% cut-off when battery fully charged
      • Dual-color LED indicator: (charging red, fully charged or noloading green)
      • Light weight and compact
      • High-efficiency and low-power consumption
    • Environmental:
      • Operating temperature: 0 to 457°C
      • Storage temperature: -20 to 70°C
      • Humidity: <65% RH
    • Reliability:
      • Insulation class: II
      • Electrical safety: EN60335, IEC60335
      • EMC standard: EN55014-1, EN55014-2 and FCC part 15
  • Maximum output power: 294W
  • Input voltage: 100-240V AC
  • Nominal output voltage: 24V
  • Maximum output voltage: 29.4V
  • Maximum output current: 10A
  • Line frequency range: 50-60Hz
  • Efficiency (at 100% loading): e80%
  • Ripple: d1% x Vo
  • Temperature range: 0-45°C
  • Relative humidity: <65% RH
  • Short-circuit protection
  • Over-voltage protection
  • Over-current protection
  • Reverse polarity connect protection
  • General:
    • 3-step charging control (per-charge CC-CV)
    • Options:
      • NTC inside
      • 100% cut-off when battery fully charged
    • Dual-color LED indicator: (charging red, fully charged or noloading green)
    • Light weight and compact
    • High-efficiency and low-power consumption
  • Environmental:
    • Operating temperature: 0 to 457°C
    • Storage temperature: -20 to 70°C
    • Humidity: <65% RH
  • Reliability:
    • Insulation class: II
    • Electrical safety: EN60335, IEC60335
    • EMC standard: EN55014-1, EN55014-2 and FCC part 15
  • 3-step charging control (per-charge CC-CV)
  • Options:
    • NTC inside
    • 100% cut-off when battery fully charged
  • Dual-color LED indicator: (charging red, fully charged or noloading green)
  • Light weight and compact
  • High-efficiency and low-power consumption
  • NTC inside
  • 100% cut-off when battery fully charged
  • Operating temperature: 0 to 457°C
  • Storage temperature: -20 to 70°C
  • Humidity: <65% RH
  • Insulation class: II
  • Electrical safety: EN60335, IEC60335
  • EMC standard: EN55014-1, EN55014-2 and FCC part 15
