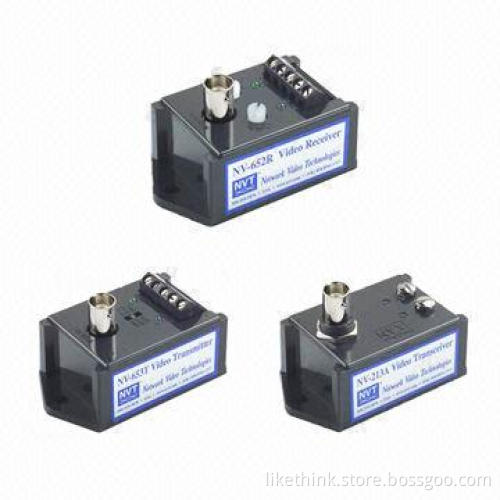

Video Balun, 1,600 Meters Transmission Distance Without Power, Three Transmission Options

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

Transmit full motion picture, different receivers with different distances can be transmitted
Used in conjunction with the NV-652R, can transmit 1,600 meters excellent anti-jamming performance
Built-in surge protection and floating
3 kinds of transmission distance selection
LED working status indicator, power blue, green video signal
In a NV-RM8/10 rack can be installed on 10 NV-653T

Technical indicators:

Video: frequency response DC-5MHz
Power: 12-24V AC/DC, maximum 250mA (a floating power supply can supply to multiple NV-653T)
Three transmission options
Attenuation ≤0.5dB: 15kHz-5MHz 60dB
Humidity: 0 - 95% RH
Impedance: BNC (75Ω), UTP (100Ω)
Surge protection: 6,000V 1.2μs x 50μs
LED status indicators:
- Power indicator: blue
- Dimensions (excluding connectors): 76 x 39 x 28mm
- Video signal: green
Weight: 100g
Transmission line type: category 5 or 5e unshielded twisted pair or larger
Material: black ABS
Impedance: 100 ±20 Ohms
Installation: two 4.4mm mounting holes in the rack can be installed on a NV-RM8/10 10NV652R
DC loop resistance: 18Ω/100m
Differential capacitance: 62pF/meter
