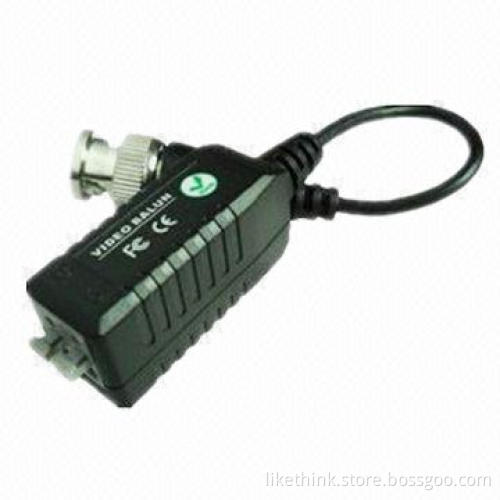

Video Balun with 300m Color Transmission Distance, Higher Cable Utilization, Reduce Project Costs

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Transfer effect: real-time transmission of AV signal clear, high-quality video effects

Transmission distance: 300 meters transmission distance without power

High safety performance: interference suppression, three lightning, fire-resistant, high temperature, anti-static, low EMI, line transient surge protection

Design Science: with thread, easy to install on the hard disk recorder, convenient interface aesthetics, SMT surface mount technology design

Installation is simple: without the use of tools, manual can be installed

Product performance parameters:

Dimensions: 22mm x 20mm x 22mm (BNC connector with cable included)
Case material: ABS plastic body
Color: black matte
Weight: 74g (one pair, with packaging)
Input and output: BNC Interface, UTP ± card line interface
Input signal: 1-2Vp-p unbalanced input
Output signal: 1-2Vp-p balanced output
Video transmission distance: 0-300m (CAT-5/5E/6 UTP)
Lightning immunity: built-in anti-static/induced lightning protection

Videos:

Frequency response: DC to 6MHz
Common-mode rejection ratio: 0 to 6MHz 60dB (typical)
Impedance: coax (BNC male) 75Ω
UTP (unshielded twisted pair) 100Ω

Cables:

Cable type: unshielded twisted pair, 24-16AWG
Cable type: category 5 or category 5 or better
Cable impedance: 100 ± 20Ω
Distributed capacitance: less than 62pF/m
DC loop resistance: 18Ω/100m
Power requirements: no power supply

Environmental requirements:

Operating temperature: -20-70°C
Relative humidity: 0-95% (non-condensing)
Storage temperature: 40 to 150°C
Transient inhibition: differential mode 4,000V, 10/700us

Dimensions: 22mm x 20mm x 22mm (BNC connector with cable included)

Case material: ABS plastic body

Color: black matte

Weight: 74g (one pair, with packaging)

Input and output: BNC Interface, UTP ± card line interface

Input signal: 1-2Vp-p unbalanced input

Output signal: 1-2Vp-p balanced output

Video transmission distance: 0-300m (CAT-5/5E/6 UTP)

Lightning immunity: built-in anti-static/induced lightning protection

Frequency response: DC to 6MHz

Common-mode rejection ratio: 0 to 6MHz 60dB (typical)

Impedance: coax (BNC male) 75Ω

UTP (unshielded twisted pair) 100Ω

Cable type: unshielded twisted pair, 24-16AWG

Cable type: category 5 or category 5 or better

Cable impedance: 100 ± 20Ω

Distributed capacitance: less than 62pF/m

DC loop resistance: 18Ω/100m

Power requirements: no power supply

Operating temperature: -20-70°C

Relative humidity: 0-95% (non-condensing)

Storage temperature: 40 to 150°C

Transient inhibition: differential mode 4,000V, 10/700us
