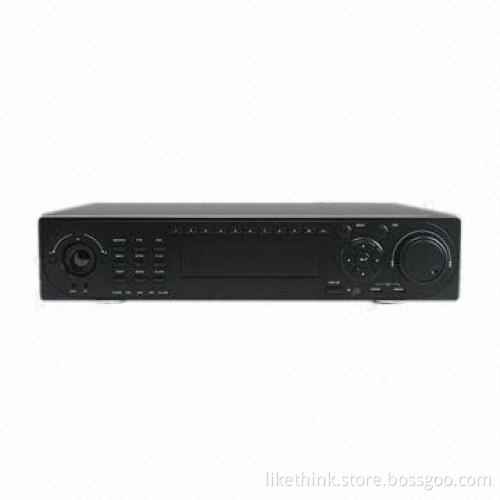

16CH Network DVRs, Supports 16ch 960P IP Camera, 8pcs SATA HDD Inside and Cloud Service/3G/Wi-Fi

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union, MoneyGram or PayPal

Product Description

Main processor: high performance embedded microprocessor-31

Operating system: embedded Linux OS

Video compression format: H.264

Display image resolution: 720P at 30fps/960P at 30fps/1080P at 30fps

Playback image resolution: 720P at 30fps/960P at 30fps/1080P at 30fps

Motion detection can setup 192(16x12)pcs motion detection area each channel and multilevel sensitivity (1-6 levels are adjustable)

Privacy masking: depends on IPC

Audio compression format: ADPCM

Two-way audio: 1ch

Recording mode: manual recording, motion detection recording, time recording, alarm

Recording storage: HDD, network

Frame rate: 30 fps

Recording playback: maximum support of 16ch 960P or 9ch 1080P synchronously playback

Backup mode: supports HDD, USB flash disk store and backup

Network video input: 16ch

Video output: 1ch CVBS (BNC), 1ch VGA and 1ch HDMI

Audio input: 16ch IPC composite audio

Audio output: 1ch (supports two-way audio)

Alarm input: 16ch alarm input

Alarm output: 4ch alarm output

Network: 1x10/100Mbps, RJ45 port

RS485: standard 485 port, supports half-duplex, green terminal port

USB: 2 USB2.0 ports

HDD: support 8pcs SATA HDD inside

Power: DC 12V/4A

Power consumption: 20-25W (not includes HDD and PoE)

Operating temperature: 0-55°C

Operating humidity: 10-90%

Dimensions: 440*445*90mm (2U height)

Weight: 8.2-8.7kg (not includes HDD)
