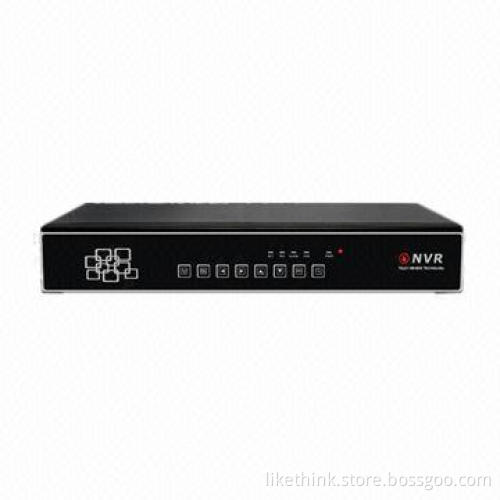

9CH NVR with 9-channel Digital Video Input and Real-time Video, Supports VGA, HDMI, Onvif, Mobile

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union, MoneyGram or PayPal

Product Description

Main processor: high-performance embedded microprocessor-20A

Operating system: embedded Linux OS

Video compression format: H.264

Display image resolution: 720P at 30fps/960P at 30fps/1080P at 30fps

Playback image resolution: 720P at 30fps/960P at 30fps/1080P at 30fps

Motion detection can setup 192 (16 x 12) pieces motion detection area each channel and multilevel sensitivity (1-6 levels are adjustable)

Privacy masking: depends on IPC

Audio compression format: ADPCM

Two-way audio: 1CH

Recording mode: manual recording, motion detection recording, time recording, alarm

Recording storage: HDD, network

Frame rate: 30fps

Recording playback: maximum support of 4CH 960P or 2CH 1080P synchronously playback

Backup mode: supports HDD, USB flash disk store and backup

Video: network video input 9CH

Video output: 1CH CVBS (BNC), 1CH VGA and 1CH HDMI®

Audio input: 9CH IPC composite audio

Audio output: 1CH (supports two-way audio)

Alarm input: 9CH alarm input

Alarm output: 1CH alarm output

Network: 1 x 10/100Mbps, RJ45 port

RS485: standard 485 port, supports half-duplex, green terminal port

USB: 2 USB2.0 ports

HDD: supports 2 pieces SATA HDD inside

Power supply: 12V DC/4A

Power consumption: 16-18W (not includes HDD and PoE)

Operating temperature: 0-55°C

Operating humidity: 10-90% RH

Dimensions: 335 x 252 x 50mm (1U height)

Weight: 2.0-2.12kg (not includes HDD)
