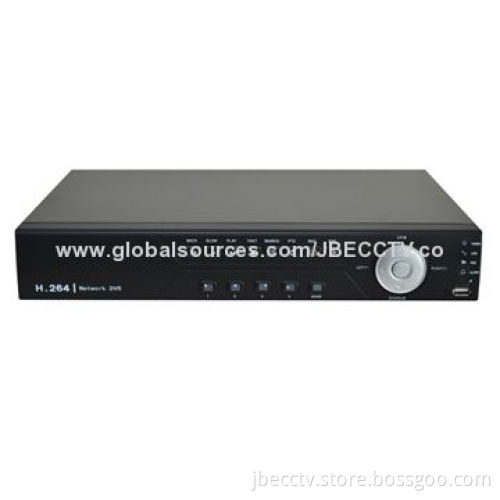

4-channel D1 Standalone DVR with D1/HD1/CIF Recording Resolution, Supports Multiple Languages

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance or Western Union

Product Description

System: industrial embedded micro-controller, H.264 compression format, Embedded Linux OS

System resources: multiple channel recording, playback and network operating at the same time

10 users online with professional authority management, CMS up to 255pcs DVR

Operating port: wired/wireless mouse, front panel, remote controller, RS485 PTZ

Display: 4-channel (1/4) display

Recording resolution: 120/100fps D1 real-time recording

NTSC: D1 (704 x 576p), HD1 (704 x 288p), CIF (352 x 288p)

PAL: D1 (704 x 480p), HD1 (704 x 240p), CIF (352 x 240p)

Image quality: D1/HD1/CIF/QCIF

Audio compression: G.711A

Recording mode and priority: schedule, manual, motion, sensor

Playback: supports 4CH playback simultaneously

Search mode: time, calendar, event list, channel

Backup: network/USB/HDD/USB DVD-RW

Video input: 4-channel D1

Video output: 1-channel HDMI,1-channel BNC, 1-channel VGA

Audio I/O: 1/1, (4CH audio input optional)

Alarm I/O: 0/0

Network Ethernet: RJ45 (10/100M)

Protocol: TCP/IP, DHCP, DDNS, NTP, SMTP, IE browser, email notification functions

Language: multilanguage

Storage HDD: supports 1pc SATA (Seagate HDD recommended)

Power supply: DC 12V, 3A/<15W (without HDD)

Operating temperature and humidity: -10 to +55°C/10 to 90%/86 to 106kpa

Mobile surveillance: supports MS Windows, Symbian OS, iPhone, Blackberry and Android operating system mobile phone

Dimensions: 259 x 221 x 46mm/1.7kg (6 pieces/carton)

Accessories: power x 1/mouse x 1/IR controller x 1/manual x 1/CD x 1
