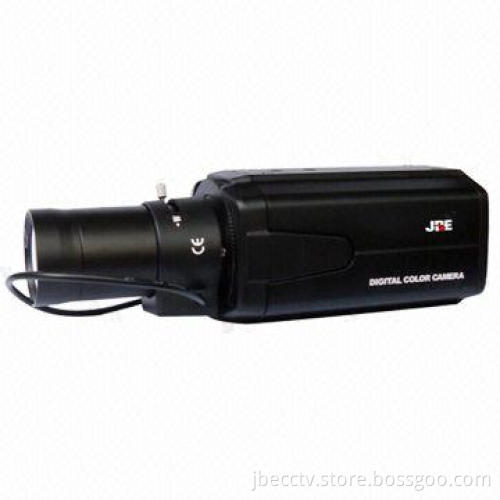

CCTV Box Camera with Automatic White Balance and DC Drive Lens Compatible
  • CCTV Box Camera with Automatic White Balance and DC Drive Lens Compatible
CCTV Box Camera with Automatic White Balance and DC Drive Lens Compatible

CCTV Box Camera with Automatic White Balance and DC Drive Lens Compatible

Get Latest Price
Payment Type:
T/T in Advance or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance or Western Union
Product Description
Product Description
  • Features:
    • DC drive lens compatible (lens/bracket)
    • Fix lens (optional): 4, 6, 8 and 12mm
    • Automatic lens (optional): 3.5 to 8mm lens
    • Minimum illumination: 0.5 Lux
    • Easy-to-install
  • Specifications:
    • System: PAL/NTSC
    • Image sensor: 1/3-inch Sony CCD
    • Picture elements:
      • PAL: 752 x 582 pixels
      • NTSC: 768 x 494 pixels
    • Video output: 1.0Vp-p, 75II composite, BNC x 1
    • Horizontal resolution: 420/480/520/550TVL
    • S/N ratio: ≥48dB
    • Minimum illumination: 0.00 Lux (LED on)
    • Illumination: 0.5 Lux
    • Electronic shutter: 1/50 to 1/100,000 seconds
    • White balance: automatic
    • Gamma ratio: ≥0.45
    • Infrared spectrum: infrared sensitive
    • Operating temperature outdoor: -10 to 50°C
    • Humidity: 0 to 95% RH (non-condensing)
    • Synchronization system: 2:1 interlace internal
    • Power supply: 12V DC, 250mA
    • Weight: 0.5kg
  • DC drive lens compatible (lens/bracket)
  • Fix lens (optional): 4, 6, 8 and 12mm
  • Automatic lens (optional): 3.5 to 8mm lens
  • Minimum illumination: 0.5 Lux
  • Easy-to-install
  • System: PAL/NTSC
  • Image sensor: 1/3-inch Sony CCD
  • Picture elements:
    • PAL: 752 x 582 pixels
    • NTSC: 768 x 494 pixels
  • Video output: 1.0Vp-p, 75II composite, BNC x 1
  • Horizontal resolution: 420/480/520/550TVL
  • S/N ratio: ≥48dB
  • Minimum illumination: 0.00 Lux (LED on)
  • Illumination: 0.5 Lux
  • Electronic shutter: 1/50 to 1/100,000 seconds
  • White balance: automatic
  • Gamma ratio: ≥0.45
  • Infrared spectrum: infrared sensitive
  • Operating temperature outdoor: -10 to 50°C
  • Humidity: 0 to 95% RH (non-condensing)
  • Synchronization system: 2:1 interlace internal
  • Power supply: 12V DC, 250mA
  • Weight: 0.5kg
  • PAL: 752 x 582 pixels
  • NTSC: 768 x 494 pixels
