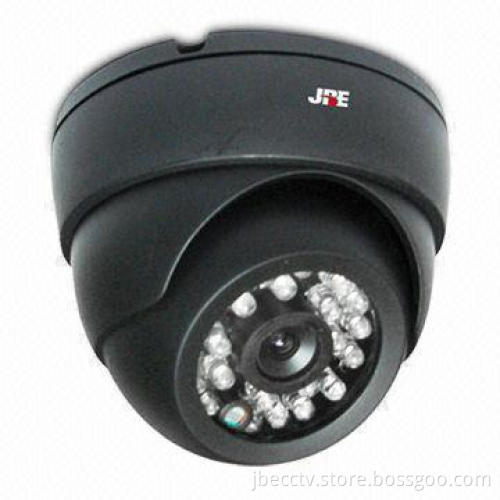

CMOS 600TVL Plastic CCTV IR Dome Camera with IR-cut and 0.5 Lux Illumination
  • CMOS 600TVL Plastic CCTV IR Dome Camera with IR-cut and 0.5 Lux Illumination
CMOS 600TVL Plastic CCTV IR Dome Camera with IR-cut and 0.5 Lux Illumination

CMOS 600TVL Plastic CCTV IR Dome Camera with IR-cut and 0.5 Lux Illumination

Get Latest Price
Payment Type:
T/T in Advance or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance or Western Union
Product Description
Product Description
  • Specifications:
    • Φ5mm IR LEDs: 24 pieces
    • Effective viewing distance: 25m
    • Easy to install
    • With built-in 3.6/6mm fixed lens
    • With automatic tracking white balance
    • Systems: PAL and NTSC
    • Pixels:
      • PAL: 752 x 582 pixels
      • NTSC: 768 x 494 pixels
    • Video output: 1.0Vp-p, 75 II composite, BNC x 1
    • Horizontal resolution: 1/3-inch CMOS 600TVL
    • S/N ratio: ≥48dB
    • Minimum illumination: 0.00 Lux (LED-on)
    • Illumination: 0.5 Lux
    • Electronic shutter time: 1/50 to 1/100,000 seconds
    • White balance: automatic
    • Gamma ratio: ≥0.45dB
    • Infrared spectrum: infrared sensitive
    • Operating temperature range: -10 to 50°C (outdoor)
    • Humidity: 0 to 95% RH (non-condensing)
    • Synchronization system: 2:1 interlace internal
    • Power supply: 12V DC, 250mA
    • Weight: 0.45kg (approximately)
  • Φ5mm IR LEDs: 24 pieces
  • Effective viewing distance: 25m
  • Easy to install
  • With built-in 3.6/6mm fixed lens
  • With automatic tracking white balance
  • Systems: PAL and NTSC
  • Pixels:
    • PAL: 752 x 582 pixels
    • NTSC: 768 x 494 pixels
  • Video output: 1.0Vp-p, 75 II composite, BNC x 1
  • Horizontal resolution: 1/3-inch CMOS 600TVL
  • S/N ratio: ≥48dB
  • Minimum illumination: 0.00 Lux (LED-on)
  • Illumination: 0.5 Lux
  • Electronic shutter time: 1/50 to 1/100,000 seconds
  • White balance: automatic
  • Gamma ratio: ≥0.45dB
  • Infrared spectrum: infrared sensitive
  • Operating temperature range: -10 to 50°C (outdoor)
  • Humidity: 0 to 95% RH (non-condensing)
  • Synchronization system: 2:1 interlace internal
  • Power supply: 12V DC, 250mA
  • Weight: 0.45kg (approximately)
  • PAL: 752 x 582 pixels
  • NTSC: 768 x 494 pixels
