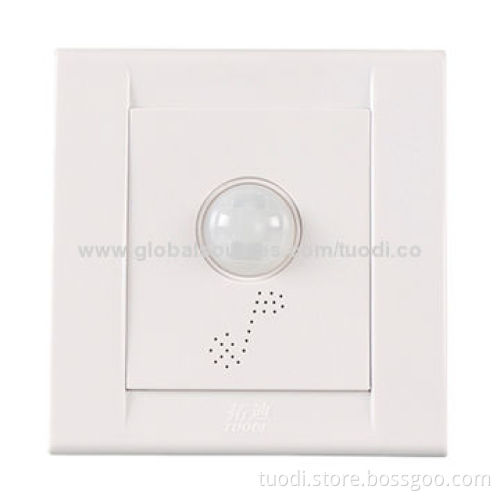

Factory direct sell motion sensor LED light switch wall switch

Factory direct sell motion sensor LED light switch wall switch

Get Latest Price

Payment Type:: T/T, Western Union or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union or PayPal

Product Description

Specifications:

Model number: TDL-2181J

Function description: relay controls load

Operating voltages: 100-265V AC (50-60Hz)

Operating temperatures: -20-50°C

Static power: <0.026W

Load power: 1000W

Load capacity: all kinds of light, appliance

Connecting style: bipolarity

Output mode: induction output

Light control range: un adjustable, but customized

Delay shutdown time: un adjustable, but customized

Induction mode: passive

Induction angle: 140°coning angle

Detecting distance: 8-10m

Installing method standard: 86 model, wall installation, ceiling installation

Dimension/color: 86 x 86mm/porcelain

Range of application, functions and features:

Automatic induction: when people enter into the range of induction, it will turn on, when people leave, it will turn off with delay

It can be applied to corridor, passageway, toilet, basement, warehouse, garage and more, which have the function of automatic lighting and control

Photosensitive control: it adopting photoactive control, it doesn't turn on during daylight or in strong light environment

Automatic random delay: after it turns on, in the delay period, if there is presence of people, it keeps on working until people leave, than turn on with delay

Status indicator: efficient LED indicator, which is easy for installation and fault analysis

Temperature compensation: tuodi specialized temperature compensation chip, which used to reducing the effect of temp. on detecting distance
