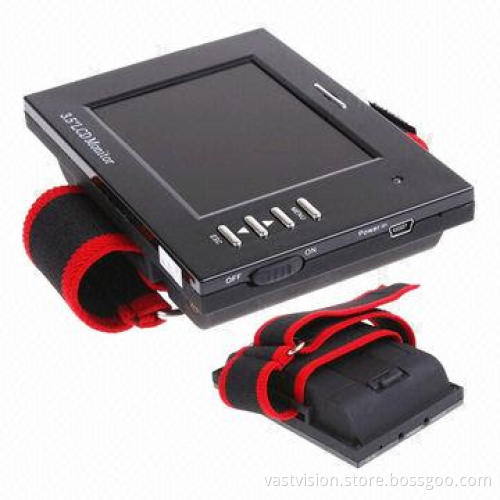

3.5" Handheld CCTV Tester Monitors with 12V DC Output, Battery Pack for Field Monitor Use Included
  • 3.5" Handheld CCTV Tester Monitors with 12V DC Output, Battery Pack for Field Monitor Use Included
3.5" Handheld CCTV Tester Monitors with 12V DC Output, Battery Pack for Field Monitor Use Included

3.5" Handheld CCTV Tester Monitors with 12V DC Output, Battery Pack for Field Monitor Use Included

Get Latest Price
Payment Type:
T/T in Advance, PayPal or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance, PayPal or Western Union
Product Description
Product Description
  • Specifications:
    • Display area: 3.5-inch TFT LCD active matrix
    • Material: ABS plastic
    • Resolution: 320 x 240 pixels
    • Input signal level: 1.0Vp-p, 75 Ohms
    • Back light type: LED
    • Brightness: 300cd/m²
    • Contrast ratio: 150:1
    • Viewing angle: (up/down/left/right): 40/60/60/60 degrees
    • System of signal: PAL/NTSC
    • Power requirement: 12V DC/50-60Hz
    • Power output: 12V DC
    • Power consumption: 1.5W
    • Actual visible screen size (H x V): 70.08 x 52.56mm
    • Operating temperature: -10 to 60
    • Storage temperature: -20 to 70
    • Rear connection: 3.5mm A/V in/out with cables
    • Power supply: 12V DC output jack
    • USB 5 pins DC in jack
    • Dimensions (L x W x H): 119 x 84 x 28mm
    • Packing size (L x W x H): 260 x 145 x 63mm
    • Net weight: 120kg
    • Gross weight: 0.86kg
  • Description:
    • LED backlight provides longer life, uses less power andprovides better color saturation
    • Battery pack for field monitor use included
    • Ideal for trouble shooting system setup/fault location
    • Manual color adjustment
    • Low-power consumption
    • Battery pack provides 7 hours continuous operating when powerout closed
    • Snap-on battery pack holds 4 pieces of AA NiMH rechargeablebatteries (batteries included)
    • Manual controls for brightness, color, contrast and audiovolume
  • Features:
    • Monitors for testing video performance, angle of view, andfocus of security cameras during installation
    • With portable carrying wrist strap, rechargeable battery
    • Can be taken on installer's arm for easier video check
  • Display area: 3.5-inch TFT LCD active matrix
  • Material: ABS plastic
  • Resolution: 320 x 240 pixels
  • Input signal level: 1.0Vp-p, 75 Ohms
  • Back light type: LED
  • Brightness: 300cd/m²
  • Contrast ratio: 150:1
  • Viewing angle: (up/down/left/right): 40/60/60/60 degrees
  • System of signal: PAL/NTSC
  • Power requirement: 12V DC/50-60Hz
  • Power output: 12V DC
  • Power consumption: 1.5W
  • Actual visible screen size (H x V): 70.08 x 52.56mm
  • Operating temperature: -10 to 60
  • Storage temperature: -20 to 70
  • Rear connection: 3.5mm A/V in/out with cables
  • Power supply: 12V DC output jack
  • USB 5 pins DC in jack
  • Dimensions (L x W x H): 119 x 84 x 28mm
  • Packing size (L x W x H): 260 x 145 x 63mm
  • Net weight: 120kg
  • Gross weight: 0.86kg
  • LED backlight provides longer life, uses less power andprovides better color saturation
  • Battery pack for field monitor use included
  • Ideal for trouble shooting system setup/fault location
  • Manual color adjustment
  • Low-power consumption
  • Battery pack provides 7 hours continuous operating when powerout closed
  • Snap-on battery pack holds 4 pieces of AA NiMH rechargeablebatteries (batteries included)
  • Manual controls for brightness, color, contrast and audiovolume
  • Monitors for testing video performance, angle of view, andfocus of security cameras during installation
  • With portable carrying wrist strap, rechargeable battery
  • Can be taken on installer's arm for easier video check
