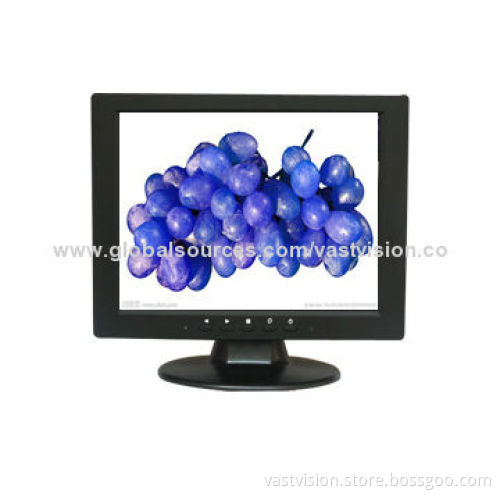

10.4-inch CCTV LCD Monitor/Security TFT Display with BNC Input 800 x 600 Pixels Resolution
  • 10.4-inch CCTV LCD Monitor/Security TFT Display with BNC Input 800 x 600 Pixels Resolution
10.4-inch CCTV LCD Monitor/Security TFT Display with BNC Input 800 x 600 Pixels Resolution

10.4-inch CCTV LCD Monitor/Security TFT Display with BNC Input 800 x 600 Pixels Resolution

Get Latest Price
Payment Type:
T/T in Advance, PayPal or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance, PayPal or Western Union
Product Description
Product Description
  • Specifications:
    • Display panel: 10.4-inch TFT LCD panel (4:3)
    • Best resolution: 800 x 600 pixels (1,024 x 768 pixels optional)
    • Contrast ratio: 400:1
    • Luminance: 250cd/m2
    • Viewing angle:
      • Horizontal: 160°
      • Vertical: 140°
    • Refresh rate: 60 to 75Hz
    • Signal interface: VGA/AV/TV/BNC (optional)
    • S systems: PAL and NTSC
    • Panel backlight: CCFL double lights
    • Image reversed: not supported
    • Power adapter:
      • Input: 110 to 220V AC
      • Output: 12V
    • Weight: 1.9kg
    • Dimensions: 26.1 x 20.1 x 4.5mm
    • Unit packing weight: 2kg
    • Unit packing dimensions: 31 x 11 x 3cm
    • Carton weight: 21kg
    • Carton box dimensions: 60 x 32.5 x 62.5cm
    • Menu languages: English, Russian, French, Spanish, German, Italian and Chinese
    • Supports VGA/RCA/BNC/TV input (optional)
    • Built-in speaker with earphone jack to connect with earphone or sound box
    • Ultra-thin design
    • Main applications: microscopes, endoscopy, flatness detector, dimensional detector, hot press, BGA rework station, laser engraving equipment, laser marking machine, rocker camera, CCTV monitor and PoS systems
  • Accessories:
    • User's manual, warranty card, stand, BNC and VGA cable (BNC input)/VGA cable, TV cable, remote control (TV input)/no cable (VGA input), AC power adapter
  • Display panel: 10.4-inch TFT LCD panel (4:3)
  • Best resolution: 800 x 600 pixels (1,024 x 768 pixels optional)
  • Contrast ratio: 400:1
  • Luminance: 250cd/m2
  • Viewing angle:
    • Horizontal: 160°
    • Vertical: 140°
  • Refresh rate: 60 to 75Hz
  • Signal interface: VGA/AV/TV/BNC (optional)
  • S systems: PAL and NTSC
  • Panel backlight: CCFL double lights
  • Image reversed: not supported
  • Power adapter:
    • Input: 110 to 220V AC
    • Output: 12V
  • Weight: 1.9kg
  • Dimensions: 26.1 x 20.1 x 4.5mm
  • Unit packing weight: 2kg
  • Unit packing dimensions: 31 x 11 x 3cm
  • Carton weight: 21kg
  • Carton box dimensions: 60 x 32.5 x 62.5cm
  • Menu languages: English, Russian, French, Spanish, German, Italian and Chinese
  • Supports VGA/RCA/BNC/TV input (optional)
  • Built-in speaker with earphone jack to connect with earphone or sound box
  • Ultra-thin design
  • Main applications: microscopes, endoscopy, flatness detector, dimensional detector, hot press, BGA rework station, laser engraving equipment, laser marking machine, rocker camera, CCTV monitor and PoS systems
  • Horizontal: 160°
  • Vertical: 140°
  • Input: 110 to 220V AC
  • Output: 12V
  • User's manual, warranty card, stand, BNC and VGA cable (BNC input)/VGA cable, TV cable, remote control (TV input)/no cable (VGA input), AC power adapter
