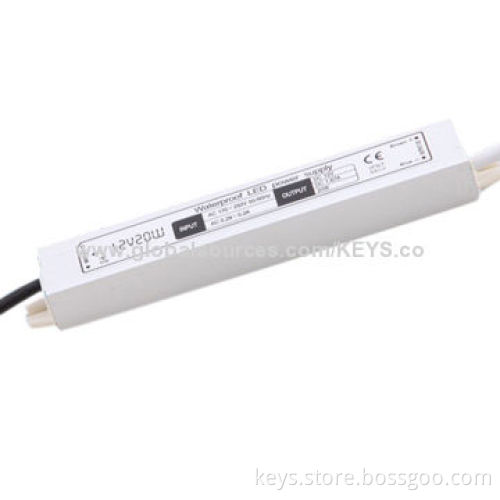

12V power supply aluminum waterproof series, 20W to 250W for all kinds of LED lighting IP67

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C or Western Union

Product Description

Features:

Specification:

Output voltage:12V
Ripple and noise note: 100mVp-p
Setup rise hold up time: 200ms, 50ms, 20ms
Voltage range: 90-130V, 170-260V
Frequency range: 50-60Hz
AC inrush current: 40A/230V
Leakage current: 3.5mA/240V AC
Housing shell: aluminum shell good for heat transfer
Protection:
- Over current: 105-150% rated output power. Protection type: hiccup mode, recovers automatically after fault condition is removed
- Over voltage: protection type: shut down O/P voltage, re-power on to recover
- Short circuit: auto recover
- Protection grade: IP67

Environment:

Working temp: -30-50°C/20-90% RH (no frost)
Storage temp: -40-80°C/20-90% RH (no frost)
Temp. coefficient: 0.03%°C (0-50°C)
Vibration frequency: 10~500Hz, 2g 10min/1cycle, period for 60min. Each long x, y, z axes

Universal AC input/full range

Protection: short circuit/overload/over voltage/over temperature

High efficiency and low operation temperature

Soft-start current can reduce the AC input impact effectively

100% full load burn-in test

Ideal for indoor or outdoor installations

New design with small size, light weight, easy for installation

Suitable for LED lighting and moving sign applications

2 years warranty

Output voltage:12V

Ripple and noise note: 100mVp-p

Setup rise hold up time: 200ms, 50ms, 20ms

Voltage range: 90-130V, 170-260V

Frequency range: 50-60Hz

AC inrush current: 40A/230V

Leakage current: 3.5mA/240V AC

Housing shell: aluminum shell good for heat transfer

Protection:

Over current: 105-150% rated output power. Protection type: hiccup mode, recovers automatically after fault condition is removed
Over voltage: protection type: shut down O/P voltage, re-power on to recover
Short circuit: auto recover
Protection grade: IP67

Over current: 105-150% rated output power. Protection type: hiccup mode, recovers automatically after fault condition is removed

Over voltage: protection type: shut down O/P voltage, re-power on to recover

Short circuit: auto recover

Protection grade: IP67

Working temp: -30-50°C/20-90% RH (no frost)

Storage temp: -40-80°C/20-90% RH (no frost)

Temp. coefficient: 0.03%°C (0-50°C)

Vibration frequency: 10~500Hz, 2g 10min/1cycle, period for 60min. Each long x, y, z axes
