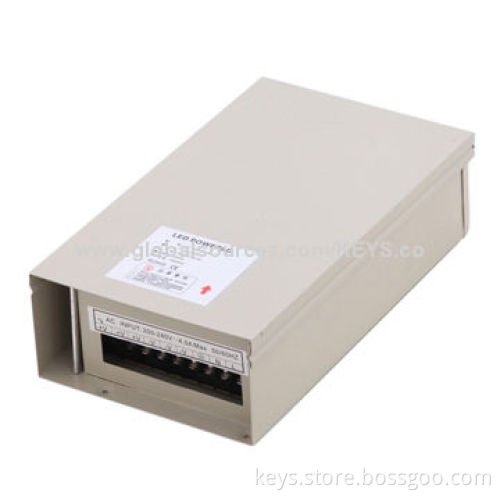

12V Power Supply, Iron Box Rain-proof Series, 60W to 400W for LED Strip IP53
  • 12V Power Supply, Iron Box Rain-proof Series, 60W to 400W for LED Strip IP53
  • 12V Power Supply, Iron Box Rain-proof Series, 60W to 400W for LED Strip IP53
  • 12V Power Supply, Iron Box Rain-proof Series, 60W to 400W for LED Strip IP53
  • 12V Power Supply, Iron Box Rain-proof Series, 60W to 400W for LED Strip IP53
  • 12V Power Supply, Iron Box Rain-proof Series, 60W to 400W for LED Strip IP53
12V Power Supply, Iron Box Rain-proof Series, 60W to 400W for LED Strip IP53
12V Power Supply, Iron Box Rain-proof Series, 60W to 400W for LED Strip IP53
12V Power Supply, Iron Box Rain-proof Series, 60W to 400W for LED Strip IP53
12V Power Supply, Iron Box Rain-proof Series, 60W to 400W for LED Strip IP53
12V Power Supply, Iron Box Rain-proof Series, 60W to 400W for LED Strip IP53

12V Power Supply, Iron Box Rain-proof Series, 60W to 400W for LED Strip IP53

Get Latest Price
Payment Type:
T/T, L/C or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C or Western Union
Product Description
Product Description
  • Features:
    • Universal AC input/full range
    • Protection: Short circuit/overload/over voltage/over temperature
    • High efficiency and low operation temperature
    • Soft-start current can reduce the AC input impact effectively
    • 100% full load burn-in test
    • Ideal for indoor or outdoor installations
    • New design with small size, light weight, easy for installation
    • Suitable for LED lighting and moving sign applications
    • 2 years warranty
  • Specifications:
    • Output voltage: 12V
    • Ripple and noise note: 100mVp-p
    • Setup rise hold up time: 200ms 50ms 20ms
    • Voltage range: 90-130V, 170-260V
    • Frequency range: 50~60Hz
    • AC  inrush current: 40A/230V
    • Leakage current: 3.5mA/240V AC
    • Housing shell: Aluminum shell good for heat transfer
  • Protection:
    • Over current: 105-150% rated output power
    • Protection type: Hiccup mode, recovers automatically after fault condition is removed
    • Over voltage: Protection type: shut down o/p voltage, re-power on to recover
    • Short circuit: Auto recover
    • Protection grade: IP67
  • Environment:
    • Working temp.: - 30 ~ 50°C/ 20 ~ 90% RH (no frost)
    • Storage temp.: -40 ~ 80°C/ 20 ~ 90% RH (no frost)
    • Temp. coefficient: 0.03%°C (0~50°C)
    • Vibration frequency: 10~500Hz, 2G 10min/1 cycle, period for 60 min. each long X, Y, Z axes
  • Universal AC input/full range
  • Protection: Short circuit/overload/over voltage/over temperature
  • High efficiency and low operation temperature
  • Soft-start current can reduce the AC input impact effectively
  • 100% full load burn-in test
  • Ideal for indoor or outdoor installations
  • New design with small size, light weight, easy for installation
  • Suitable for LED lighting and moving sign applications
  • 2 years warranty
  • Output voltage: 12V
  • Ripple and noise note: 100mVp-p
  • Setup rise hold up time: 200ms 50ms 20ms
  • Voltage range: 90-130V, 170-260V
  • Frequency range: 50~60Hz
  • AC  inrush current: 40A/230V
  • Leakage current: 3.5mA/240V AC
  • Housing shell: Aluminum shell good for heat transfer
  • Over current: 105-150% rated output power
  • Protection type: Hiccup mode, recovers automatically after fault condition is removed
  • Over voltage: Protection type: shut down o/p voltage, re-power on to recover
  • Short circuit: Auto recover
  • Protection grade: IP67
  • Working temp.: - 30 ~ 50°C/ 20 ~ 90% RH (no frost)
  • Storage temp.: -40 ~ 80°C/ 20 ~ 90% RH (no frost)
  • Temp. coefficient: 0.03%°C (0~50°C)
  • Vibration frequency: 10~500Hz, 2G 10min/1 cycle, period for 60 min. each long X, Y, Z axes
