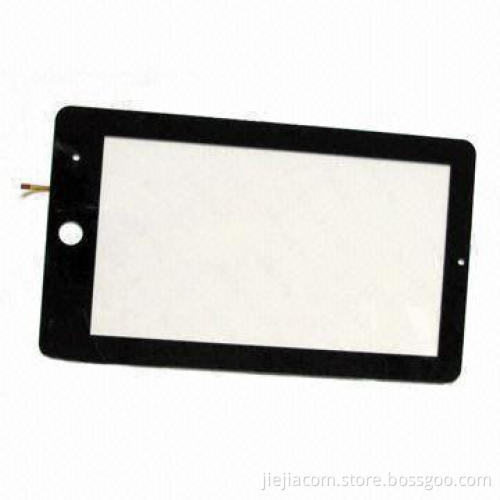

4 Wires Resistive Touch Panel with PET Border, 5V DC Operating Voltage

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Standard sizes: 1.8 to 17 inches (custom sizes areavailable)

Optical:

Film type: anti-glare, anti-reflective
Light transmission: 83 +/- 5%, options to 90%

Electrical:

Operating voltage: 5V DC (maximum 5.5V, 3.3V available aftercustomization)
Insulation impedance: 25 (maximum) at 25V DC
Linearity: 98.5% (bias less than 1.5%)
Chattering time: 10msec or less

Mechanical:

Input method: finger, pen or gloved hand
Touch activation force: 80 grams typical
Scrape hardness: 3H per ASTM D3365 3H per JIS K5400

Supported operating systems:

MS-DOS, Microsoft's Windows 95/98/2000/CE/ME/2000NT, OS/2, MAC,Linux and more
Sensor thickness (sensor plus glass): 0.95/ 1.35/ 2.05I0.15mm

Reliability:

Operating environment: -10 to 60°C
Storage temperature: -20 to 70°C

Humidity: 60C, 90% RH 240 hours

Touch durability: 5 million touches in a single location

Surface scratch 150/300K (250/500gf, 50mm/s)

Surface pitting 1M (250gf 2 times/s)

NEMA 4 capable

All trademarks shown here are for reference purposesonly. They are the property of their respective owners, and we arenot authorized to sell items bearing such trademarks.

Film type: anti-glare, anti-reflective

Light transmission: 83 +/- 5%, options to 90%

Operating voltage: 5V DC (maximum 5.5V, 3.3V available aftercustomization)

Insulation impedance: 25 (maximum) at 25V DC

Linearity: 98.5% (bias less than 1.5%)

Chattering time: 10msec or less

Input method: finger, pen or gloved hand

Touch activation force: 80 grams typical

Scrape hardness: 3H per ASTM D3365 3H per JIS K5400

MS-DOS, Microsoft's Windows 95/98/2000/CE/ME/2000NT, OS/2, MAC,Linux and more

Sensor thickness (sensor plus glass): 0.95/ 1.35/ 2.05I0.15mm

Operating environment: -10 to 60°C

Storage temperature: -20 to 70°C
