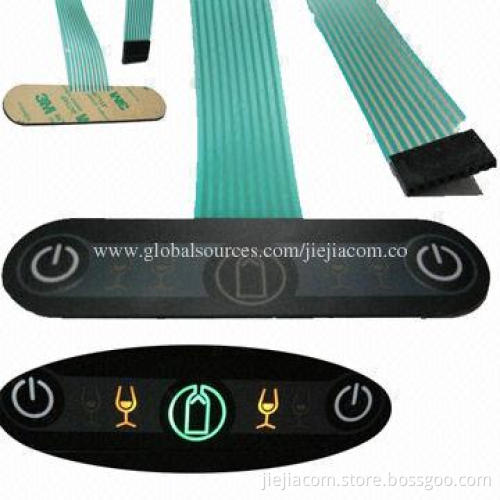

LED Membrane Keypad Switches, Good Appearance, Small Volume, Long Lifespan

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Cash, Bank Transfer or T/T

Product Description

Parameters:

Insulating material and conductive layers
Good appearance, small volume, long lifespan and bend resistance make the membrane switch popularly accepted
With strong resistances against the water, fire, oil and scratch
Operating voltage: ≤50V DC
Operating current: ≤100mA
Contact resistance: 0.5-10Ω
Insulation resistance: ≥100MΩ (100V DC)
Base material withstand: 2kV DC
Contact bounce: ≤6 minutes
Loop resistance: 50, 150, 350Ω or can be customized
Lifespan expectancy: >1 million time
Switch stroke range: 0.1-0.4mm (flat type), 0.4-1.0mm (tactile type)
Actuation force: 15-750g
Flex tail pitch (standard): 2.54/2.50/1.27/1.25mm
Operating temperature: -20-70°C
Storage temperature: -40-85°C
Humidity range: 40°C, 90-95% RH, 240 hours
Size deviation: ±0.15mm
Side boundary: ≤0.1mm
