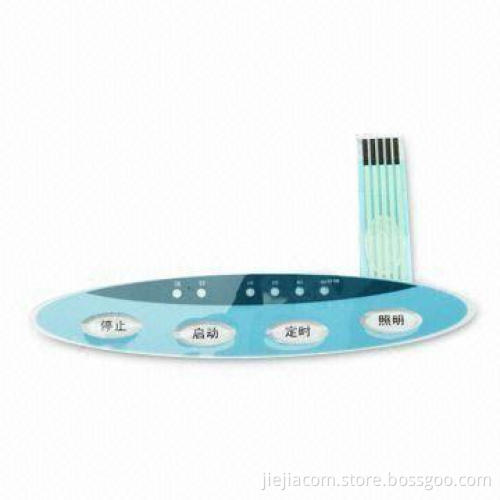

Metal Dome Membrane Switch with 0 to 35V DC Operating Voltage

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Features:

Metal dome membrane switch
Push button switch/membrane switch panel
Overlay materials: the most commonly used base materials arepolyester and polycarbonate
Standard tolerances: ±0.010-inch
Matching color: Pantone and RAL color matching system
Tail, pin and circuit layout: subject to customers detailedrequests

Type of switch:

Non tactile
Graphics
Tactile with stainless steel domes
Tactile with polymer domes on the circuit

Specifications:

Electrical:
- Operating voltage: 0 to 35V DC
- Operating current: 100mA (maximum)
- Operating contact resistance: less than 100 Ohms
- Contact bounce: less than 5 milliseconds typical
- Conductors: printed silver conductive inks or carbon blend
- RFI and ESD shielding: available in most configurations
Mechanical:
- Life expectancy: 1,000,000 actuations per switch position
- Actuation force: 6 to 24 ounces, range depending on customerspecification
- Switch travel: 0.005 to 0.030-inch typical
- Overall thickness: 0.020 to 0.050-inch typical
Environmental:
- Storage temperature: -40 to +70°C
- Storage altitude: sea level to 35,000 feet
- Operating temperature and altitude: -30 to +75°C
