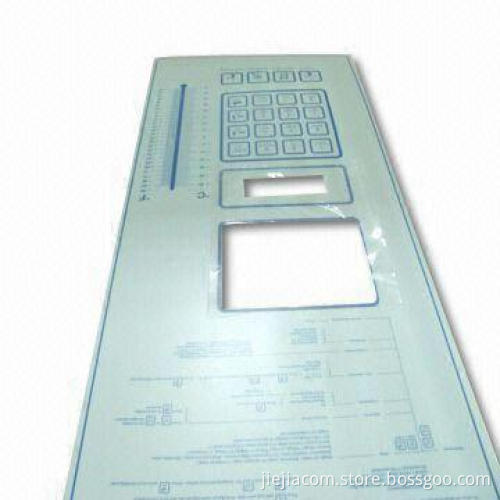

Big-sized Membrane Keyboard/Metal Dome Membrane Switch with 1 to 6 Colors or More Printing
  • Big-sized Membrane Keyboard/Metal Dome Membrane Switch with 1 to 6 Colors or More Printing
Big-sized Membrane Keyboard/Metal Dome Membrane Switch with 1 to 6 Colors or More Printing

Big-sized Membrane Keyboard/Metal Dome Membrane Switch with 1 to 6 Colors or More Printing

Get Latest Price
Payment Type:
Cash, Bank Transfer and T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Cash, Bank Transfer and T/T
Product Description
Product Description
  • Specifications:
    • Printing: 1 to 6 colors or more printing
    • Materials: PC, PVC, PET and more
    • Customized designs are welcome
    • Keypad button material England polyester PET
    • Contact current: 25 to 100mA
    • Voltage rating: 2 to 24V
    • Insulation resistance: 500V DC, 500MΩ
    • Temperatures: -40 to 85°C
    • Matching color: Pantone and RAL
    • Overlay materials: most commonly used base materials arepolyester (PET) and polycarbonate (PC)
    • Rear adhesive: 3M9448MP, 3M468, 3M467and 3M9070
    • Matching color: Pantone and RAL color matching system
    • Gloss, semi-gloss or matte
    • Metal dome tactile
    • Standard tolerances: ±0.10 inch (± 0.25mm)
  • Electric parameters:
    • Resistance: ≤1Ω/cm
    • Contact current: 25 to 100mA
    • Voltage rating: 2 to 24V
    • Voltage insulation: 1,500V
    • Voltage endurance: 250V (60Hz per minute)
    • Insulation resistance: 500V DC/500MΩ
  • Physical parameters:
    • Active force: 0.3 to 3N
    • Life cycle: >1mil (non-tactile)
    • Hand speed: d5 minutes
    • Humidity: 40, 48, 95% RH
    • Working altitude: 0 to 4,500m
  • Applications:
    • Equipment, household appliances, electronic products andmore
  • Printing: 1 to 6 colors or more printing
  • Materials: PC, PVC, PET and more
  • Customized designs are welcome
  • Keypad button material England polyester PET
  • Contact current: 25 to 100mA
  • Voltage rating: 2 to 24V
  • Insulation resistance: 500V DC, 500MΩ
  • Temperatures: -40 to 85°C
  • Matching color: Pantone and RAL
  • Overlay materials: most commonly used base materials arepolyester (PET) and polycarbonate (PC)
  • Rear adhesive: 3M9448MP, 3M468, 3M467and 3M9070
  • Matching color: Pantone and RAL color matching system
  • Gloss, semi-gloss or matte
  • Metal dome tactile
  • Standard tolerances: ±0.10 inch (± 0.25mm)
  • Resistance: ≤1Ω/cm
  • Contact current: 25 to 100mA
  • Voltage rating: 2 to 24V
  • Voltage insulation: 1,500V
  • Voltage endurance: 250V (60Hz per minute)
  • Insulation resistance: 500V DC/500MΩ
  • Active force: 0.3 to 3N
  • Life cycle: >1mil (non-tactile)
  • Hand speed: d5 minutes
  • Humidity: 40, 48, 95% RH
  • Working altitude: 0 to 4,500m
  • Equipment, household appliances, electronic products andmore
