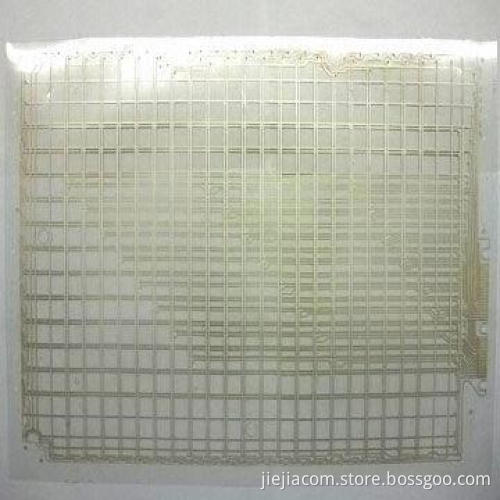

Manufacturer Silver Paste Printing PCB Circuit Membrane Keypad, Switch for KLD

Manufacturer Silver Paste Printing PCB Circuit Membrane Keypad, Switch for KLD

Get Latest Price

Payment Type:: T/T/Western Union/PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T/Western Union/PayPal

Product Description

Features:

Material: auto-type
20-piece buttons, all keys are metal dome tactile style
Female connector at tail
Customized colors and sizes are accepted

Specifications:

Electrical:
- Maximum circuit rating: 100mA at 35V DC, 1W
- Contact resistance: 10 to 500©
- Insulation resistance: 100m©, 100V
- Dielectric withstand: 250Vrms
- Contact bounce: d5ms
- Lifespan:
  - Flat type: e5,000,000 times
  - Tactile type: e1,000,000 times
Mechanical data:
- Actuation force:
  - Flat types: 57 to 284g
  - Tactile types: 170 to 397g
- Switch stroke:
  - Flat types: 0.1 to 0.5mm
  - Tactile types: 0.6 to 1.5mm
- Temperature:
  - Operating: -40 to 80°C
  - Storage: -40 to 85°C
- Humidity range: 90 to 95% RH, 240 hours
- Vibration: 20G
- Dimensions: 100 x 100mm
- Materials: PVC/PC/PET/acrylic plastic sheet with double-sidedtape, such as 3m, Sony, Nitto, Tesa with screen printing adhesivebacked
- Features embossing polydome or metal dome can be used,waterproof and heat-resistant
- Sizes and designs as your requirement
- Delivery time: 7 to 10 days after samples and order areconfirmed
- Certificates: SGS, RoHS
- Rapid prototyping
- Short lead-times
- Cost savings
- Any sizes and shape are available
- Customized membrane switches are available

Applications:

Widely used in communications, industrial controls, householdappliances, GPS, children's kids' learning, electronic readingmachines, various game machines, instruments and Apparatuses,attendance machine, electronic scales, medical equipment,electronic tools equipment, automatic sewing machines, embroiderymachines, machine maintenance equipment, computer keyboard andelectronic calculators and more

Material: auto-type

20-piece buttons, all keys are metal dome tactile style

Female connector at tail

Customized colors and sizes are accepted

Electrical:

Maximum circuit rating: 100mA at 35V DC, 1W
Contact resistance: 10 to 500©
Insulation resistance: 100m©, 100V
Dielectric withstand: 250Vrms
Contact bounce: d5ms
Lifespan:
- Flat type: e5,000,000 times
- Tactile type: e1,000,000 times

Mechanical data:

Actuation force:
- Flat types: 57 to 284g
- Tactile types: 170 to 397g
Switch stroke:
- Flat types: 0.1 to 0.5mm
- Tactile types: 0.6 to 1.5mm
Temperature:
- Operating: -40 to 80°C
- Storage: -40 to 85°C
Humidity range: 90 to 95% RH, 240 hours
Vibration: 20G
Dimensions: 100 x 100mm
Materials: PVC/PC/PET/acrylic plastic sheet with double-sidedtape, such as 3m, Sony, Nitto, Tesa with screen printing adhesivebacked
Features embossing polydome or metal dome can be used,waterproof and heat-resistant
Sizes and designs as your requirement
Delivery time: 7 to 10 days after samples and order areconfirmed
Certificates: SGS, RoHS
Rapid prototyping
Short lead-times
Cost savings
Any sizes and shape are available
Customized membrane switches are available

Maximum circuit rating: 100mA at 35V DC, 1W

Contact resistance: 10 to 500©

Insulation resistance: 100m©, 100V

Dielectric withstand: 250Vrms

Contact bounce: d5ms

Lifespan:

Flat type: e5,000,000 times
Tactile type: e1,000,000 times

Flat type: e5,000,000 times

Tactile type: e1,000,000 times

Actuation force:

Flat types: 57 to 284g
Tactile types: 170 to 397g

Switch stroke:

Flat types: 0.1 to 0.5mm
Tactile types: 0.6 to 1.5mm

Temperature:

Operating: -40 to 80°C
Storage: -40 to 85°C

Humidity range: 90 to 95% RH, 240 hours

Vibration: 20G

Dimensions: 100 x 100mm

Materials: PVC/PC/PET/acrylic plastic sheet with double-sidedtape, such as 3m, Sony, Nitto, Tesa with screen printing adhesivebacked

Features embossing polydome or metal dome can be used,waterproof and heat-resistant

Sizes and designs as your requirement

Delivery time: 7 to 10 days after samples and order areconfirmed

Certificates: SGS, RoHS

Rapid prototyping

Short lead-times

Cost savings

Any sizes and shape are available

Customized membrane switches are available

Flat types: 57 to 284g

Tactile types: 170 to 397g

Flat types: 0.1 to 0.5mm

Tactile types: 0.6 to 1.5mm

Operating: -40 to 80°C

Storage: -40 to 85°C

Widely used in communications, industrial controls, householdappliances, GPS, children's kids' learning, electronic readingmachines, various game machines, instruments and Apparatuses,attendance machine, electronic scales, medical equipment,electronic tools equipment, automatic sewing machines, embroiderymachines, machine maintenance equipment, computer keyboard andelectronic calculators and more
