Intelligent Touch Switches with 0.3 to 3N Active Force, Customized Designs are Welcome

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Cash, Bank Transfer or T/T

Product Description

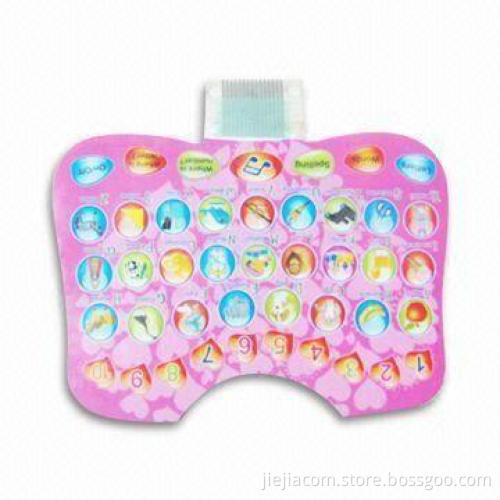

Main products are spraying: electronic says membrane switch,kid-learning machine learning membrane switch with four-coloroffset printing

Features:

Materials: PC, PVC, PET and more
Customized designs are welcome
Keypad button material England polyester PET
Applications: equipment, household appliances, electronicproducts and more
Matching color: Pantone and RAL
Overlay materials: most commonly used base materials arepolyester(PET) and polycarbonate (PC)
Rear adhesive: 3M9448MP 3M467 3M468
Matching colors: Pantone and RAL color matching system
Gloss, semi-gloss or matte
Metal dome tactile
Standard tolerances: ±0.10 inch (±0.25mm)
Electric parameter:
- Resistance: 5000©/cm
- Contact current: 25 to 100mA
- Voltage rating: 2 to 24V
- Voltage insulation: 1,500V
- Voltage endurance: 250V (60Hz/min)
- Insulation resistance 500V DC at 500M©
Physical parameters:
- Active force: 0.3 to 3N
- Lifespan: >1mil (non-tactile)
- Hand speed: d5ms
- Temperatures: -40 to 85°C
- Humidity: 40/48hrs, 95% RH
- Working altitude: 0 to 4,500m
