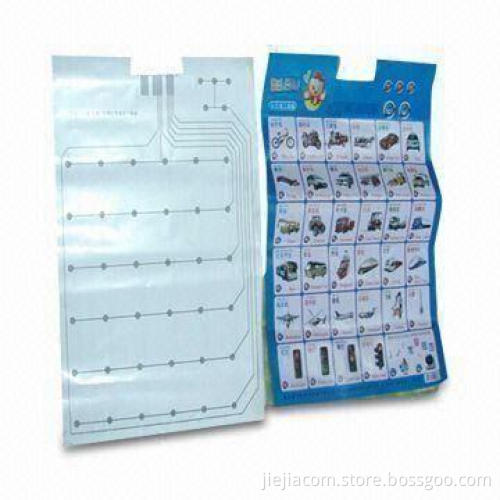

Flexible PCB with 0.05/0.075mm PET Flexible Wire, Membrane Switch and Soft Line

Get Latest Price

Payment Type:: Cash, Bank Transfer or T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Cash, Bank Transfer or T/T

Product Description

Features:

Materials: PC, PVC, PET and more
Customized designs are welcome
Keypad button material England polyester PET
Applications: equipment, household appliances, electronicproducts and more
Matching color: Pantone and RAL
Overlay materials: most commonly used base materials arepolyester (PET) and polycarbonate (PC)
Rear adhesive: 3M9448MP 3M467 3M468
Matching colors: Pantone and RAL color matching system
Gloss, semi-gloss or matte
Metal dome tactile
Standard tolerances: ±0.10-inch (±0.25mm)

Electric parameters:

Resistance: 5000©/cm
Contact current: 25 to 100mA
Voltage rating: 2 to 24V
Voltage insulation: 1,500V
Voltage endurance: 250V (60Hz/min)
Insulation resistance 500V DC at 500M©
Physical parameters:
Active force: 0.3 to 3N
Lifespan: >1mil (non-tactile)
Hand speed: d5ms
Temperatures: -40 to +85°C
Humidity: 40/48 hours, 95% RH
Operating altitude: 0 to 4,500m

All trademarks shown here are for reference purposesonly. They are the property of their respective owners, and we arenot authorized to sell items bearing such trademarks.

Materials: PC, PVC, PET and more

Customized designs are welcome

Keypad button material England polyester PET

Applications: equipment, household appliances, electronicproducts and more

Matching color: Pantone and RAL

Overlay materials: most commonly used base materials arepolyester (PET) and polycarbonate (PC)

Rear adhesive: 3M9448MP 3M467 3M468

Matching colors: Pantone and RAL color matching system

Gloss, semi-gloss or matte

Metal dome tactile

Standard tolerances: ±0.10-inch (±0.25mm)

Resistance: 5000©/cm
