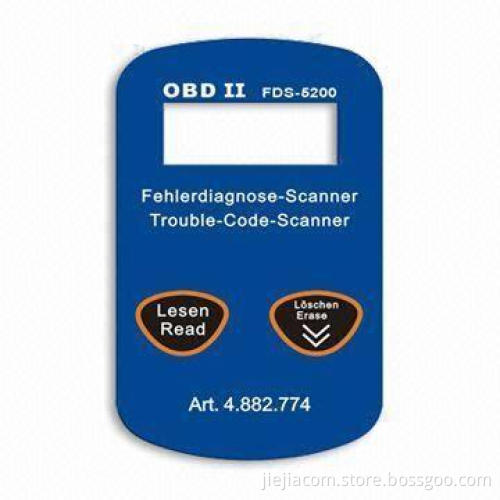

Faceplate with Graphic Overlay Panel Anaglyph Button, LCD/LED Transparent Window

Get Latest Price

Payment Type:: Cash/Bank Transfer/T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Cash/Bank Transfer/T/T

Product Description

Stick for key parts products electronic switch panel

Thickness: 0.2 to 0.25 mm

Mist side or smooth surface

Features:

Materials: PC, PVC, PET and more
Customized designs are welcomed
Keypad button material England polyester PET

Applications: equipment, household appliances, electronicproducts and more

Matching color: Pantone and RAL

Overlay materials: most commonly used base materials arepolyester (PET) and polycarbonate (PC)

Rear adhesive: 3M9448MP, 3M467, 3M468 and more

Matching colors: Pantone and RAL color matching system

Gloss, semi-gloss or matte

Metal dome tactile

Standard tolerances: ±0.10 inches (±0.25mm)

Electric parameter:

Resistance: <1©/cm
Contact current: 25 to 100mA
Voltage rating: 2 to 24V
Voltage insulation: 1,500V
8Aoltage endurance: 250V (60Hz/min)
Insulation resistance 500V DC at 500M©

Physical parameters:

Active force: 0.3 to 3N
Lifespan: >1mil (non-tactile)
Hand speed: d5ms
Temperature: -40 to +85°C
Humidity: 40/48hours, 95% RH
Working altitude: 0 to 4,500m

All trademarks shown here are for reference purposesonly. They are the property of their respective owners, and we arenot authorized to sell items bearing such trademarks.

Materials: PC, PVC, PET and more

Customized designs are welcomed

Keypad button material England polyester PET

Contact current: 25 to 100mA

Voltage rating: 2 to 24V

Voltage insulation: 1,500V

8Aoltage endurance: 250V (60Hz/min)

Active force: 0.3 to 3N

Lifespan: >1mil (non-tactile)

Hand speed: d5ms

Temperature: -40 to +85°C

Humidity: 40/48hours, 95% RH

Working altitude: 0 to 4,500m
