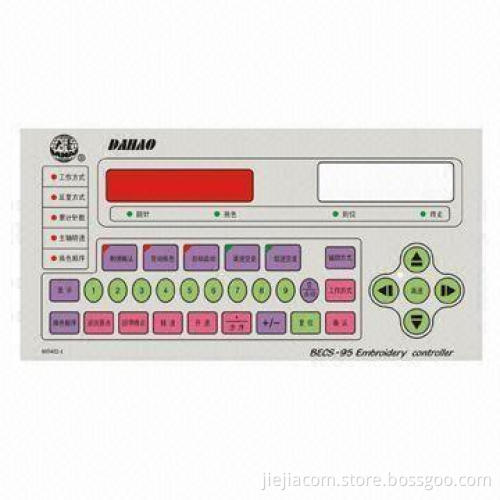

Faceplate with LED Lights, Push Button, LCD Window, Poly Dome and Multi-color Button
  • Faceplate with LED Lights, Push Button, LCD Window, Poly Dome and Multi-color Button
Faceplate with LED Lights, Push Button, LCD Window, Poly Dome and Multi-color Button

Faceplate with LED Lights, Push Button, LCD Window, Poly Dome and Multi-color Button

Get Latest Price
Payment Type:
Cash/Bank Transfer/T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Cash/Bank Transfer/T/T
Product Description
Product Description
  • Electrical performance:
    • Operating voltage: 0 to 35V DC
    • Operating current: 100mA (maximum)
    • Operating contact resistance: less than 100 Ohms (typical)
    • Contact bounce: less than 5m/second (typical)
    • Conductors: printed silver conductive inks or carbon blend
    • RFI and ESD shielding: available in most configurations
  • Mechanical performance:
    • Life expectancy: 1,000,000 actuations per switch position
    • Actuation force: 6 to 24 ounces, range depending on customerspecification
    • Switch travel: 0.005 to 0.030-inch (typical)
    • Overall thickness: 0.020 to 0.050-inch (typical)
    • Environment temperature:
      • Storage temperature: -40 to +70°C (-40 to 158°F)
      • Storage altitude: sea level to 35,000ft
      • Operating temperature and altitude: -30 to +75°C (-30 to170°F)
      • Can be designed to operate in most environments
      • Humidity: no delaminating after 24 hours at 80°C and 90%RH
  • Features:
    • Material: PET advised, matte PC (smooth), gloss PC + matte oil,gloss PC and PVC
    • Overlay materials: the most commonly used base materials arepolyester and polycarbonate
    • Rear adhesive: 3M 467MP, 3M 468MP and more
    • Standard tolerances: ±0.010-inch
    • Matching color: Pantone and RAL color matching system
    • Tail, pin and circuit layout: subject to customers detailedrequests
  • Types of switch:
    • Non-tactile
    • Graphics
    • Tactile with stainless steel domes
    • Tactile with poly domes on the circuit
  • All trademarks shown here are for reference purposesonly. They are the property of their respective owners, and we arenot authorized to sell items bearing such trademarks.
  • Operating voltage: 0 to 35V DC
  • Operating current: 100mA (maximum)
  • Operating contact resistance: less than 100 Ohms (typical)
  • Contact bounce: less than 5m/second (typical)
  • Conductors: printed silver conductive inks or carbon blend
  • RFI and ESD shielding: available in most configurations
  • Life expectancy: 1,000,000 actuations per switch position
  • Actuation force: 6 to 24 ounces, range depending on customerspecification
  • Switch travel: 0.005 to 0.030-inch (typical)
  • Overall thickness: 0.020 to 0.050-inch (typical)
  • Environment temperature:
    • Storage temperature: -40 to +70°C (-40 to 158°F)
    • Storage altitude: sea level to 35,000ft
    • Operating temperature and altitude: -30 to +75°C (-30 to170°F)
    • Can be designed to operate in most environments
    • Humidity: no delaminating after 24 hours at 80°C and 90%RH
  • Storage temperature: -40 to +70°C (-40 to 158°F)
  • Storage altitude: sea level to 35,000ft
  • Operating temperature and altitude: -30 to +75°C (-30 to170°F)
  • Can be designed to operate in most environments
  • Humidity: no delaminating after 24 hours at 80°C and 90%RH
  • Material: PET advised, matte PC (smooth), gloss PC + matte oil,gloss PC and PVC
  • Overlay materials: the most commonly used base materials arepolyester and polycarbonate
  • Rear adhesive: 3M 467MP, 3M 468MP and more
  • Standard tolerances: ±0.010-inch
  • Matching color: Pantone and RAL color matching system
  • Tail, pin and circuit layout: subject to customers detailedrequests
  • Non-tactile
  • Graphics
  • Tactile with stainless steel domes
  • Tactile with poly domes on the circuit
