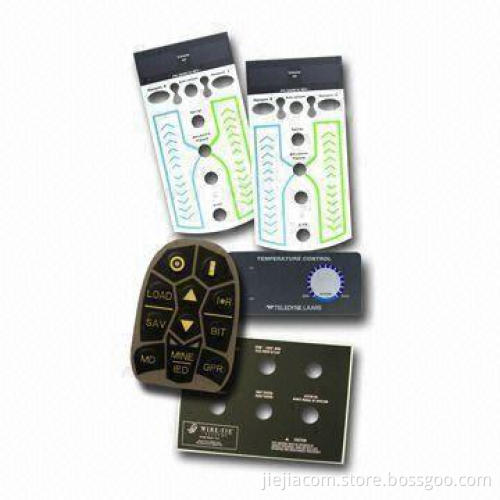

PET/PC Graphic Membrane Overlay/Panel with -20 to +70°C Operating Temperature

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Diametric overlays and membranes can be found on a wide rangeof products in many different industry areas, including:

Scientific equipment
Radio frequency equipment
Photography
Computing
AV equipment
Remote controls
Air filtration units

Overlay material: polyester (PET) or polycarbonate (PC)

Rear adhesive: 3M467MP, 3M468MP and more

Matching color (Pantone and RAL color matching system)

Gloss, semi-gloss or matte

Circuit rating: 35VDC, 100mA, 1W (maximum)

Contact resistance: 10 to 500 Ohm

Insulation resistance: 100m Ohm at 100V DC

Dielectric withstand: 250rms (50 to 60Hz per min)

Contact bounce: <5ms

Actuation force:

Flat type 60 to 300g (2 to 10oz)

Tactile type: 150 to 400g (6 to 14oz)

Switch stroke:

Flat type 0.1 to 0.5mm

Tactile type: 0.6 to 1.5mm

Cable pitch: 2.54, 2.50, 1.27 and 1.25mm

Dimension tolerance: ±0.2mm

Operating temperature: -20 to +70 degree Celsius

Storage temperature: -40 to +80 degree Celsius

Humidity: 40 degree Celsius, 90 to 95% RH for 240 hours

Scientific equipment

Radio frequency equipment

Photography

Computing

AV equipment

Remote controls

Air filtration units

Life expectancy:

Flat type: 5,000,000 closures or more

Tactile type: 1,000,000 closures or more

All trademarks shown here are for reference purposesonly. They are the property of their respective owners, and we arenot authorized to sell items bearing such trademarks.
