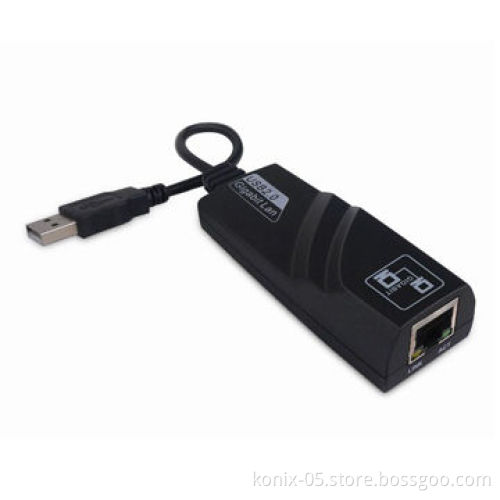

USB Gigabit Ethernet Adapter with USB Data Base and Bus Power Capability

Get Latest Price

Payment Type:: T/T, L/C, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union

Product Description

USB 2.0 gigabit Ethernet adapter is a cost effective solutionthat converts a USB port into a 10/100/1,000Base-T Ethernetport

It enables low cost and affordable gigabit Ethernet networkconnection to desktop, notebook PC, and embedded system usingpopular USB ports

No need to purchase an expensive gigabit network interface cardand to spare a PCI or CardBUS slot, just using your existing USBports and you can upgrade your network connection speed

Features:

Supports 10/100/1,000Mbps auto-sensing capability
Supports auto MDIX (straight and cross network cableauto-detection)
USB specification: 1.0, 1.1, and 2.0 compliant
Supports USB full and high speed modes with bus powercapability
IEEE 802.3, 802.3u, and 802.3ab (10Base-T, 100Base-TX, and1000Base-T) compatible
Supports both full-duplex and half-duplex operation in fastEthernet
Supports jumbo packet of up to 9KB
Supports suspend mode and remote wakeup via link-up and magicpacket
Plug-and-play installation

Specification:

Network standards: IEEE 802.3, 802.3u, and 802.3ab
Data base: USB
LED indicators link, 1,000Mbps
Power integrates on-chip 3.3V to 2.5V voltage regulator andrequires only single power supply: 3.3V
Network interface female RJ45 jack supporting auto MDIX
Full duplex 10BaseT, 100BaseTx, 1000BaseT
Half duplex 10BaseT, 100BaseTx
RAM embedded 20KB SRAM for RX packet buffering and 20KB SRAMfor TX packet buffering
Operating temperature: 0 to 70 degrees Celsius
Operating system: Microsoft Windows 98SE/Me/2000/XP/Vista,Linux and Mac OS X
Certification: FCC and CE

System requirements:

Pentium III 800MHz or faster PC with USB port
256MB RAM or more
Microsoft Windows 98SE/Me/2000/XP/Vista
Linux 2.4 Kernel or above
Mac OS 10.3 or above

All trademarks shown here are for reference purposesonly. They are the property of their respective owners, and we arenot authorized to sell items bearing such trademarks.
