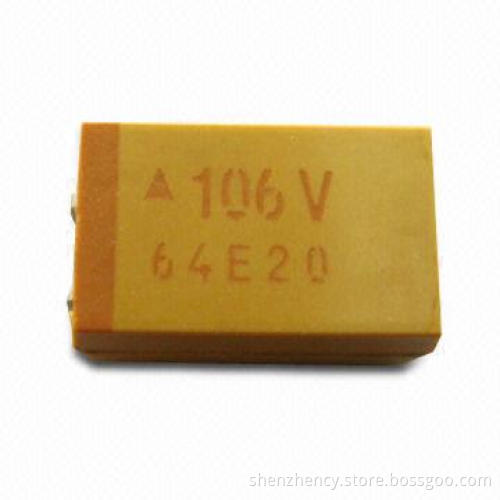

Solid Tantalum Capacitor, Suitable for Military Equipment, Computers and Cellphone

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Features:

Designed and manufactured with demanding requirements ofsurface mount technology
S, A, B, C, D, E and V seven case codes
Lower ESR compared with dipped tantalum capacitors
Compatible with automatic pick and place equipment
Suitable for military equipment and computer, cell phone andother electronic products
Meets requirements of EIA 535BAAC and QC300801, Q/YHC.45-01standard

Specifications:

Voltage rating: 4 to 50V
Capacitance tolerance: 10 to ±20%
Capacitance range: 0.1 to 1,000μF
Operating temperature: -55 to +125°C (above 85°C anduse dreaded voltage)
DC leakage current (20°C): I0 ≤0.01CRUR or 0.5μA(whichever is greater)
Dissipation factor (20°C): see table 1
Temperature performance: see table 1
Climatic category: 55/125/21
Life test: 2,000 hours
Reliability: 2% per 1,000 hours at 85°C with 0.1Ω/Vseries impedance 60% confidence level

Designed and manufactured with demanding requirements ofsurface mount technology

S, A, B, C, D, E and V seven case codes

Lower ESR compared with dipped tantalum capacitors

Compatible with automatic pick and place equipment

Suitable for military equipment and computer, cell phone andother electronic products

Meets requirements of EIA 535BAAC and QC300801, Q/YHC.45-01standard

Voltage rating: 4 to 50V

Capacitance tolerance: 10 to ±20%

Capacitance range: 0.1 to 1,000μF

Operating temperature: -55 to +125°C (above 85°C anduse dreaded voltage)

DC leakage current (20°C): I0 ≤0.01CRUR or 0.5μA(whichever is greater)

Dissipation factor (20°C): see table 1
