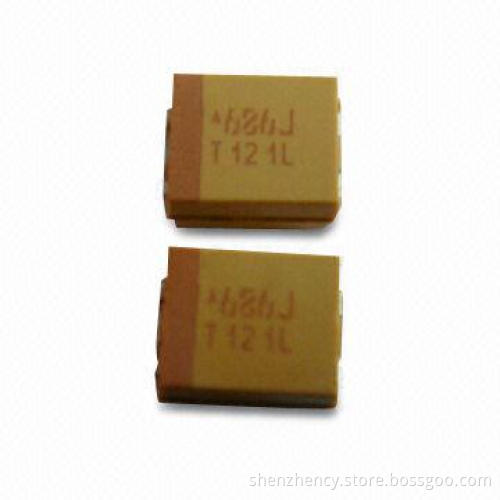

Tantalum Capacitors, Suitable for Military Equipment and Electronic Products

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

General characteristics:

Operating temperature: -55 to +125°C (above 85°C, usedreaded voltage)
Capacitance tolerance: ±20%, ±10%
Capacitance range: 0.1 to 1,000μF
Voltage rating: 4 to 50V
DC leakage current (20): I0 ≤0.01CRUR or 0.5μlA(whichever is greater)
Dissipation factor (20°C): see table 1
Temperature performance: see table 1
Climatic category: 55/125/21 ceramic
Life test: 2,000-hour
Reliability: 2% per 1,000h at 85°C with 0.1Ω/V seriesimpedance 60% confidence level

Features:

Designed and manufactured with demanding requirements ofsurface mount technology in mind
S, A, B, C, D, E and V seven case codes
Lower ESR compared with dipped
Compatible with automatic pick and place equipment
Suitable for military equipment and computer, ceil telephoneand other electronic products
Meets requirements of EIA 535BAAC, QC300801 and Q/YHC.45-01standards

Operating temperature: -55 to +125°C (above 85°C, usedreaded voltage)

Capacitance tolerance: ±20%, ±10%

Capacitance range: 0.1 to 1,000μF

Voltage rating: 4 to 50V

DC leakage current (20): I0 ≤0.01CRUR or 0.5μlA(whichever is greater)

Dissipation factor (20°C): see table 1

Temperature performance: see table 1

Climatic category: 55/125/21 ceramic

Life test: 2,000-hour

Reliability: 2% per 1,000h at 85°C with 0.1Ω/V seriesimpedance 60% confidence level

Designed and manufactured with demanding requirements ofsurface mount technology in mind

S, A, B, C, D, E and V seven case codes
