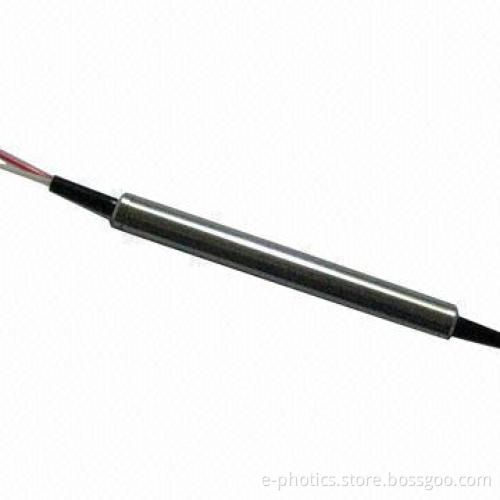

Standard Circulator with 300mW Power Handling, >50dB Return Loss
  • Standard Circulator with 300mW Power Handling, >50dB Return Loss
  • Standard Circulator with 300mW Power Handling, >50dB Return Loss
Standard Circulator with 300mW Power Handling, >50dB Return Loss
Standard Circulator with 300mW Power Handling, >50dB Return Loss

Standard Circulator with 300mW Power Handling, >50dB Return Loss

Get Latest Price
Payment Type:
T/T, L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C
Product Description
Product Description
  • Specifications:
    • Grades: P, A
    • Configuration: port 1, 2, 3
    • Operating wavelength: 1,310 ±30/1,550 ±30/1,585 ±30nm
    • Insertion loss:
      • Typical: 0.6, 0.8dB
      • Maximum: 0.8, 1.0dB
    • Channel peak isolation: >50dB
    • Channel minimum isolation: >40dB
    • Channel cross talk: >50
    • Polarization dependent loss: <0.15ps
    • Polarization mode dispersion: <0.1ps
    • Return loss: >50dB
    • Power handling: 300mW
    • Operating temperature: 0 to +70°C
    • Storage temperature: -40 to +85°C
    • Dimensions: Ø5.5 x 50mm
  • Features:
    • Low-insertion loss
    • Wide band high-isolation
    • Low-PDL
    • Compact in-line packing
    • High-stability and reliability
    • Epoxy free optical path
  • Applications:
    • Optical amplifiers
    • Metro area network
    • Wavelength add/drops
    • Dispersion compensation
    • Bi-direction communication
  • Note:
    • At 23°C over bandwidth
    • Does not include connector, splice and fiber-end fresnel losses
    • Including PDL, center wavelength + 15nm, -5 to + 70°C
  • Grades: P, A
  • Configuration: port 1, 2, 3
  • Operating wavelength: 1,310 ±30/1,550 ±30/1,585 ±30nm
  • Insertion loss:
    • Typical: 0.6, 0.8dB
    • Maximum: 0.8, 1.0dB
  • Channel peak isolation: >50dB
  • Channel minimum isolation: >40dB
  • Channel cross talk: >50
  • Polarization dependent loss: <0.15ps
  • Polarization mode dispersion: <0.1ps
  • Return loss: >50dB
  • Power handling: 300mW
  • Operating temperature: 0 to +70°C
  • Storage temperature: -40 to +85°C
  • Dimensions: Ø5.5 x 50mm
  • Typical: 0.6, 0.8dB
  • Maximum: 0.8, 1.0dB
  • Low-insertion loss
  • Wide band high-isolation
  • Low-PDL
  • Compact in-line packing
  • High-stability and reliability
  • Epoxy free optical path
  • Optical amplifiers
  • Metro area network
  • Wavelength add/drops
  • Dispersion compensation
  • Bi-direction communication
  • At 23°C over bandwidth
  • Does not include connector, splice and fiber-end fresnel losses
  • Including PDL, center wavelength + 15nm, -5 to + 70°C
