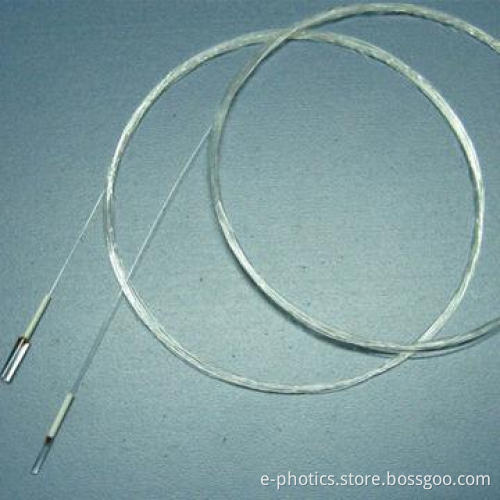

Optical MM/SM Fiber Pigtail with High Return Loss
  • Optical MM/SM Fiber Pigtail with High Return Loss
  • Optical MM/SM Fiber Pigtail with High Return Loss
Optical MM/SM Fiber Pigtail with High Return Loss
Optical MM/SM Fiber Pigtail with High Return Loss

Optical MM/SM Fiber Pigtail with High Return Loss

Get Latest Price
Payment Type:
T/T, L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C
Product Description
Product Description
  • Features:
    • Low insertion loss
    • High return loss
    • High environmental stability
  • Applications:
    • Fiber-optic lab use
    • Collimator Assembly
    • Isolator/WDM/Switches
  • Specifications: (Standard)
  • Parameter: premium
  • AR coating (nm): 1310±40, 1550±40 and 1270-1600
  • Angle polish: 8° or other degree
  • Typical reflectance: 0.15%
  • Maximum reflectance: 0.25%
  • Return loss (Typ.): 65dB
  • Return loss (min.) : 60dB
  • Operating temperature: -20 to +75°C
  • Storage temperature: -40° to +85°C
  • Dimensions:
    • 1.8 (OD) x 6.0 to 5.5 (L) mm or custom size
    • 1.0 (OD) x 5.5 to 5.0 (L) mm or custom size
  • Fiber type: 250um bare fiber or 900um loose tube
  • Fiber length: 1.8m or custom length
  • Low insertion loss
  • High return loss
  • High environmental stability
  • Fiber-optic lab use
  • Collimator Assembly
  • Isolator/WDM/Switches
  • 1.8 (OD) x 6.0 to 5.5 (L) mm or custom size
  • 1.0 (OD) x 5.5 to 5.0 (L) mm or custom size
