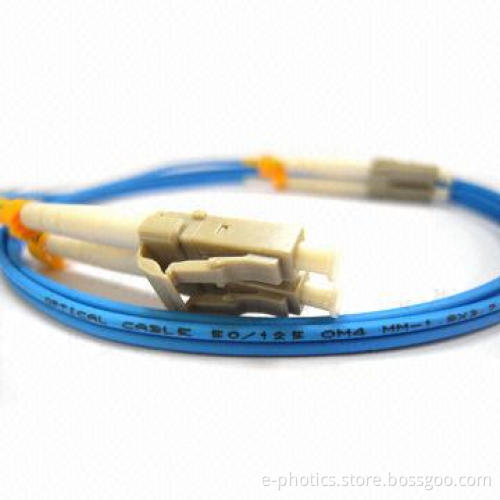

Fiber-optic Patch Cord with PC/UPC/APC Polished Type and ≤0.2dB Low-insertion Loss
  • Fiber-optic Patch Cord with PC/UPC/APC Polished Type and ≤0.2dB Low-insertion Loss
Fiber-optic Patch Cord with PC/UPC/APC Polished Type and ≤0.2dB Low-insertion Loss

Fiber-optic Patch Cord with PC/UPC/APC Polished Type and ≤0.2dB Low-insertion Loss

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Features:
    • Connector type: FC to FC
    • High-size precision and good exchange ability
    • High-dense connection and easy for operating
    • Cable diameter: 0.9, 2.0 and 3.0mm
    • Cable types: PVC, LSZH, OM3 and armored
    • Polishing types: PC, UPC and APC
  • Specifications:
    • Low-insertion loss: ≤0.2dB (UPC/SM)
    • High-return loss: ≥60dB (UPC/SM)
    • Good repeatability: ≤0.1dB
    • Durability: ≥1,000 times
    • Operating temperature: -40 to 75°C
    • Storage temperature: -45 to 85°C
    • With IEC, YD-T826/1996, NTT, YD/T826, YD/T895 and YD/T896 marks
  • Modem:
    • Single: 9 or 125μm
    • Multiple: 62.5/125 and 50/125μm
    • Length: (optional)
  • Applications:
    • FTTX + LAN
    • Optical fiber test facilities
    • Optical communication systems
    • Optical access networks
    • Optical fiber CATV
  • Connector type: FC to FC
  • High-size precision and good exchange ability
  • High-dense connection and easy for operating
  • Cable diameter: 0.9, 2.0 and 3.0mm
  • Cable types: PVC, LSZH, OM3 and armored
  • Polishing types: PC, UPC and APC
  • Low-insertion loss: ≤0.2dB (UPC/SM)
  • High-return loss: ≥60dB (UPC/SM)
  • Good repeatability: ≤0.1dB
  • Durability: ≥1,000 times
  • Operating temperature: -40 to 75°C
  • Storage temperature: -45 to 85°C
  • With IEC, YD-T826/1996, NTT, YD/T826, YD/T895 and YD/T896 marks
  • Single: 9 or 125μm
  • Multiple: 62.5/125 and 50/125μm
  • Length: (optional)
  • FTTX + LAN
  • Optical fiber test facilities
  • Optical communication systems
  • Optical access networks
  • Optical fiber CATV
