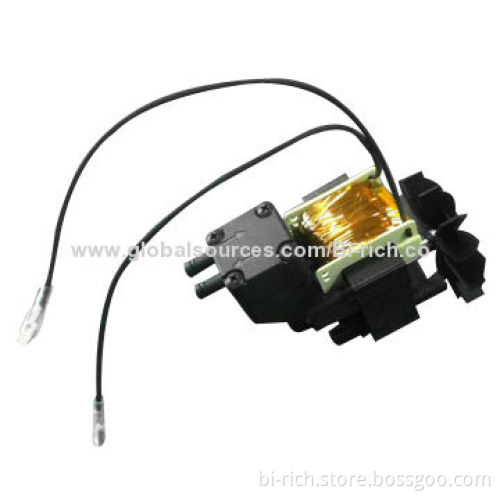

Piston Compressor Motor with High Working Pressure

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Electrical requirements: 230/50 and 120V AC/60Hz

Power consumption: ≤65W

Rated pressure range: 12 to 14psi and 14 to 16psi

Operating pressure range: ≥12 (0.85kgf/cm²) and ≥14psi (0.98kgf/cm²)

Liter flow range: ≥6 and 7lpm

Rated speed: ≥2500 and 3100rpm

Sound level: ≤55 and 60dBA

Low electric voltage of starting: 207/50 and 108V/60Hz

Environment temperature range: 10 to 40 and 10 to 40°C

Insulating grade: F

Restart pressure: 0psi

Heating protection: 130°C, BR-A1D130
