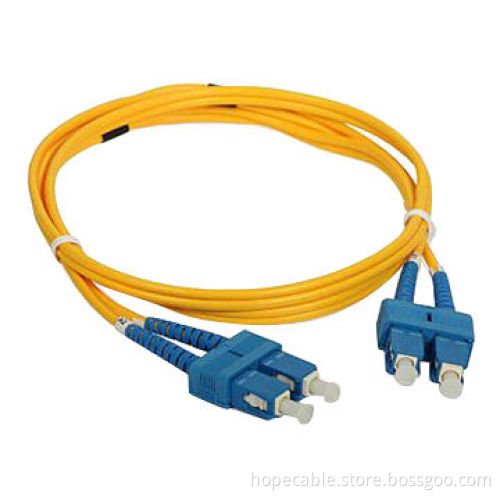

Single-mode/Multimode SC Fiber Optic Patch Cords

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Applications:

CATV, metro
Active device termination, test equipment
Telecommunication networks, local area networks (LANs), data processing networks
Premise installations, wide area networks (WANs)
Industrial, medical and military

Characteristics:

High return loss
Low insertion loss
Good interchangeability and duplication
Made of high quality ceramic sleeve

SC fiber optic patch cable cord descriptions:

SC patch cable is easy to insert and remove
If you experience high light loss, try to reconnect it
The SC patch cord is old generation of connectors, but is still commonly used for multimode networks
SC patch cable are rated for 500 mating cycles
SC fiber cable connector has bayonet-style housing and a long spring-loaded ferrule hold the fiber
They are available in both multimode and single mode versions
Horizontally mounted simplex and duplex adapters are available with metal or plastic housing, with a choice of phosphor bronze or zirconia split sleeve
The SC fiber-optic patch cables is one of the older generations of connector, but is still widely used for multimode networks, including LANs for buildings and campuses

SC fiber patch cables specifications:

Insert Loss:
- Single mode patch cable: ≤0.3dB
- Multimode patch cable: ≤0.3dB
Return Loss:
- Single mode patch cord:
  - PC: ≤-50dB
  - UPC: ≤-55dB
  - APC: ≤-60dB
- Multimode patch cord: ≥20dB
Duplicated: ≤0.1dB
Interchangeable: ≤0.2dB
Inserts pulls out the number of times: ≥1,000 times
Working temperature: -40-80°C
Colors:
- Single mode: yellow
- Multimode: orange
