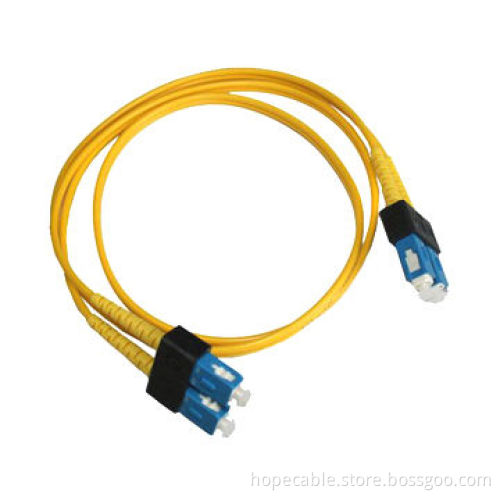

SC Patch Cord Fiber-optic Connectors

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union

Product Description

Applications:

CATV, metro
Active device termination, test equipment
Telecommunication networks, Local Area Networks (LANs), data processing networks
Premise installations, Wide Area Networks (WANs)
Industrial, medical and military

Characteristics:

SC patch cable has an advantage in keyed duplexibility to support send/receive channels
SC patch cables are low cost, simple and durable, provided for accurate alignment through their ceramic ferrules
The SC optical connector of the patch cable can be used for 1000 mating cycles
SC fiber cable is one of the earliest style and one of the most commonly used fiber-optic cable
It is convenient to use and cost-saving: it is the most cheapest type fiber cable
SC fiber patch is widely used in fiber-optic networks
SC fiber patch cable is with zirconia sleeve and plastic housing

SC fiber-optic patch cable specifications:

Insert loss:
- Single mode patch cable: ≤0.3dB
- Multi-mode patch cable: ≤0.3dB
Return loss:
- Single mode patch cord: PC ≤-50dB, UPC≤-55dB, APC≤-60dB
- Multi-mode patch cord: ≥20dB
Duplicated: ≤0.1dB
Interchangeable: ≤0.2dB
Inserts pulls out the number of times (time): ≥1000
Working temperature: -40 - +80°C
Color:
- Single mode: yellow
- Multi-mode: orange
