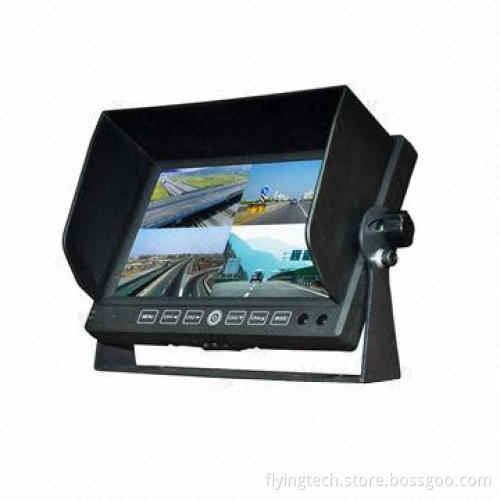

Car Parking Assist System with 7-inch TFT Monitor 4Ch AV Input and 4CH Video Recorder Function

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT, Western Union or PayPal

Product Description

Screen ratio: 7-inch TFT 16:9

Back light luminance: LED, 300cd/㎡

Resolution: 800 x RGB x 480 pixels

Compatible systems: NTSC & PAL (automatically)

OSD control: Color, brightness, contrast, volume, languages (English, Deutsch, French, Spanish, Portugal, Italian, Dutch, Simplify Chinese)

View angles: Hor. L(70) R(70) and Ver. up (50) , down (70)

Image reversion: up/down and left/right

Power requirements: 12-24V DC

Power consumption: ＜8W

Storage temperatures: -30℃ to 80℃

Working temperatures: -20℃ to 70℃

Size: 180mm*121mm*24mm

Weight: 630g

Key color: Black rubber oil, radium carving, through blue light

Shockproof level: 4G

DVR image quality: DVR recording 4 channels video signal, VGA resolution： 640*480

Recording speed: 60fps

Storage format: AVI

Memory interface: 1 SD interface

Video storage: SD high-speed card, maximum supports 32G

AV Inputs: 4 way video input，1way audio input

Number of trigger and display: 4 triggers

Optional functions: 4 pins connector, butterfly style bracket

Other features: 4 channel display for reversing, full image/2 images/4 images adjustable, built-in speaker, with removable visor

Accessories: Remote controller, power supply cable, user manual, bracket

Package: 10pcs/box

Net weight: 12.7kgs

Gross weight: 13.5kgs

Measurement: 62.4*46*24cm
