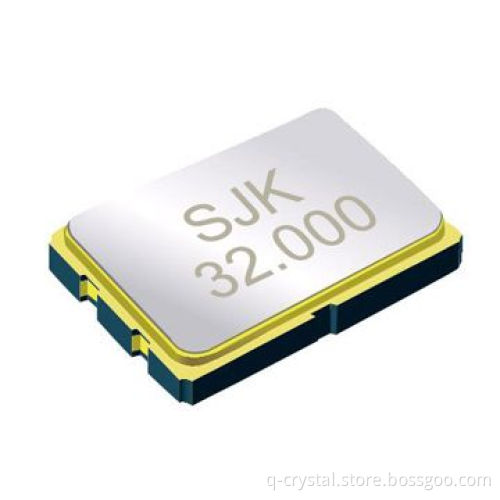

Quartz Crystal Resonator, Seam Sealed Ceramic, 7.0 x 5mm Surface Mount Package

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Features:

Ultra thin, thickness 1.0mm

Leadless type

High precision characteristic covering up to high frequencyrange

Automatic mounting

Embossed taping specification

Reflow soldering

Electrical specifications:

Output frequency range: 6.000 to 110.000MHz

Frequency tolerance (at 25°C): ±10 to ±50ppmmaximum

Load capacitance: series, 16pF, 20pF, 30pF, 32pF orspecify

Operating temperature range: -10 to +60°C, -20 to +70°Cand -40 to +85°C

Aging (at 25°C): ±1ppm, ±3ppm/yearmaximum

Shunt capacity: 7pF maximum

Drivel level: 10 to 100¼W

Applications:

Ideally suited designed for disc drives, NB, PCs and handheldelectronic products
