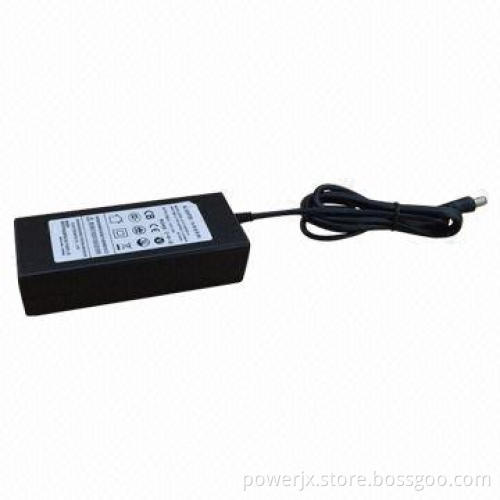

60W Power Adapter with 14V Output Voltage, 4,250mAh

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Output power range: 14V, 4.25A

Adapter size: 125 x 50 x 30mm (L x W x H)

Adapter weight: 0.22g/pieces

Input rated voltage: 100 to 240V AC

Input frequency range: 50 to 60Hz

Input current: less than 0.5A

Input inrush current: less than 50A

Efficiency: 80% (minimum) at rated voltage

DC output voltage: 12V ± 5%

DC output current: 5A

DC output power: 60W

Leakage current: less than 1mA

Standby power: less than 0.5W

DC connector: 5.5 x 2.1 x 11mm (optional)

DC cable: 1.5m cable (optional)

Ripple and noise: less than 120mV at full road with 20MHz bandwidth

Turn-on delay time: less than 3S (110V AC and full load)

Dielectric voltage: A IEC320 three pin input/output (FG) 3000V AC one minute

Safety protection: output voltage protection (150 to 180% rated output current)

Output current protection (150 to 180% rated output current)

Short current protection

Operating temperatures: 0 to 55°C

Storage temperatures: -20 to 85°C

Certificates: CE, GS, UL/CUL, FCC and RoHS

3years warranty
